GN 366 Oval Tubular Handles, Assembling from the back side, aluminium, plastic

Oval Tubular Handles Assembling from the back side aluminium plastic GN 366 thumbnail

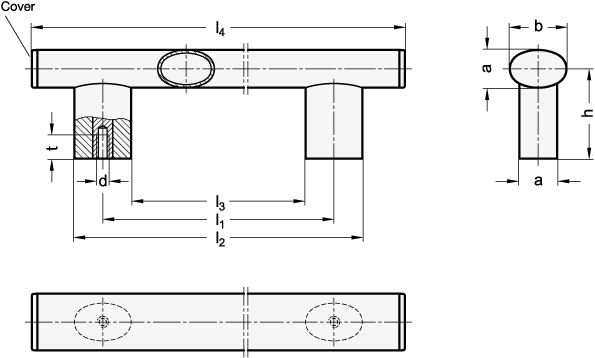

Oval Tubular Handles Assembling from the back side aluminium plastic GN 366 sketch

Show filter

b	d		l₁ ±0,5	a	h	l₂	l₃	l₄	t min.

36	M 6	M 8	200	24	57	236	164	290	15
36	M 6	M 8	250	24	57	286	214	340	15
36	M 6	M 8	300	24	57	336	264	390	15
36	M 6	M 8	400	24	57	436	364	490	15
36	M 6	M 8	500	24	57	536	464	590	15
36	M 6	M 8	600	24	57	636	564	690	15

Filter combination produces no result.

Specification

Handle tube
Aluminum

Handle legs / covers
Plastic
Technopolymer (Polyamide PA)

Glass fiber reinforced
Temperature resistant up to 100 °C

Tube
Powder coated
Black, RAL 9005, textured finishSW

Handl legs / covers
Black, matte

Tube Anodized, natural colorELS ELS

Handle legs / covers
Black, matte

Tube Anodized, natural colorELG ELG

Handle legs / covers
Light gray, matte

Bushing
Steel, zinc plated

Load rating information

Plastic Characteristics

RoHS

Information

Characteristic for the design of the GN 366 oval handles: Tube and handle leg are made in the same elliptical profile.

How to order

1	b
2	d
3	l₁
4	Finish

GN 366-36-M8-400-ELS
