Hygienic Design
GN 5435 Stainless Steel Star Knobs
| d1 | d2 | d3 | d4 | h1 | h2 | t min. |
|---|---|---|---|---|---|---|
| 40 | M 6 | 18 | 18,8 | 30,5 | 15 | 12 |
| 40 | M 8 | 18 | 18,8 | 30,5 | 15 | 15 |
| 50 | M 8 | 21 | 21,8 | 34 | 17 | 15 |
| 50 | M 10 | 21 | 21,8 | 34 | 17 | 18 |
Filter combination produces no result.
Specification
Stainless steel
Sealing ring
RoHS
- AISI 316 L
- Matte finish (Ra < 0.8 µm)MT
- Polished finish (Ra < 0.8 μm)PL
Sealing ring
- H-NBRH
Temperature resistant -25 °C to + 150 °C - EPDME
Temperature resistant -40 °C to + 120 °C - Blue
- Hardness 85±5 Shore A
- FDA compliant
RoHS
Information

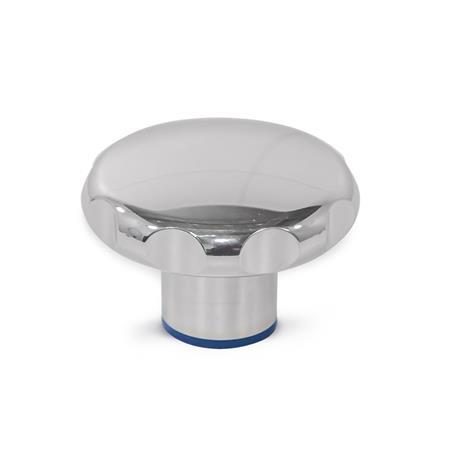

Stainless steel star knobs GN 5435 are intended for use in hygienic areas. The sealed mounting surface enables fastening without dead spaces. The high quality finish and the large corner radii prevent adherence of dirt and facilitate cleaning.
see also...
| How to order |
| ||||||||
DIN 5435-40-M8-PL-H |
