with and without Rest Position

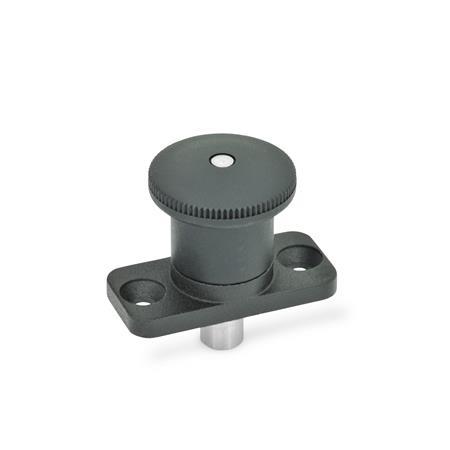

GN 822.8 Mini Indexing Plungers
Type
| B | Without rest position |
| C | With rest position |
| d1 Pin h9 Bore +0,03/+0,08 | l1 | b1 | b2 | d2 -0,15 | d3 | d4 | k | l2 | l3 | l4 | l5 Stroke | Spring load in N ≈ initial | end | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 10 | 35 | 15 | 8 | 21 | 4,3 | 25 | 20,5 | 2 | 4 | 5 | 4 | 12 |
| 5 | 6 | 12 | 40 | 18 | 10 | 25 | 4,3 | 30 | 25,5 | 2,5 | 4 | 6 | 6 | 16 |
| 6 | 6 | 12 | 40 | 18 | 10 | 25 | 4,3 | 30 | 25,5 | 2,5 | 4 | 6 | 6 | 16 |
| 8 | 10 | 20 | 50 | 23 | 14 | 33 | 5,3 | 38 | 35 | 2,5 | 5 | 10 | 11 | 35 |
| 10 | 10 | 20 | 50 | 23 | 14 | 33 | 5,3 | 38 | 35 | 2,5 | 5 | 10 | 11 | 35 |
Filter combination produces no result.
Specification
Socket
Zinc die casting
Powder coated
Black, textured finish
Plunger pin
Stainless steel AISI 303
Pressure spring
Stainless steel AISI 301
Knob
Plastic (Polyamide PA)
Load Rating Information
ISO Fundamental Tolerances
Stainless Steel Characteristics
Plastic Characteristics
RoHS
Zinc die casting
Powder coated
Black, textured finish
Plunger pin
Stainless steel AISI 303
Pressure spring
Stainless steel AISI 301
Knob
Plastic (Polyamide PA)
- Black, matte
- Not removable
Load Rating Information
ISO Fundamental Tolerances
Stainless Steel Characteristics
Plastic Characteristics
RoHS
On request
With red knob
Information
Mini indexing plungers GN 822.8 are distinguished for their small dimensions. They are mounted by countersunk screws.
The mini indexing plungers present an affordable alternative to the GN 608 and GN 608.1 indexing plungers.
In type C, the button can be turned by 30° after retracting the indexing pin, holding it in the “retraced” position using the indexing lock.
see also...
| How to order |
| ||||||
GN 822.8-6-12-B |
