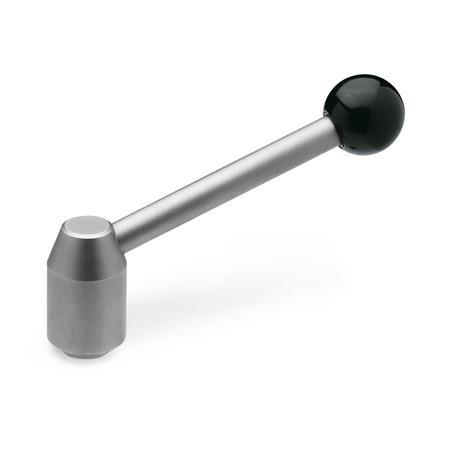

GN 212.5 Adjustable Stainless Steel Tension Levers, with threaded insert
Type
| E | Angled lever |
| d1 | d2 | d3 | d4 | d5 | h1 | h3 | h4 ≈ | h5 Stroke | l2 ≈ | l3 ≈ | t min. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 21 | M 6 | M 8 | 13,5 | 8 | 20 | 33,5 | 1 | 59 | 4 | 75 | 70 | 11 |
| 24 | M 8 | M 10 | 16 | 10 | 25 | 40 | 2,5 | 75 | 4,5 | 101 | 96 | 14 |
| 28 | M 10 | M 12 | 19 | 12 | 30 | 48,5 | 4,5 | 89 | 4,5 | 116 | 110 | 17 |
Filter combination produces no result.
Specification
Stainless steel AISI 303
Matte shot-blasted
Ball knobs DIN 319
Plastic, Duroplast
Black, shiny finish
Safety circlip
Plastic (Polyacetal POM)
RoHS
Matte shot-blasted
Ball knobs DIN 319
Plastic, Duroplast
Black, shiny finish
Safety circlip
Plastic (Polyacetal POM)
RoHS
On request
Lever straight (90°)
With inch threads
With inch threads
Information
Adjustable tension levers GN 212.5 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged.
Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.
| How to order |
| ||||||
GN 212.5-24-M10-E |
