Plastic

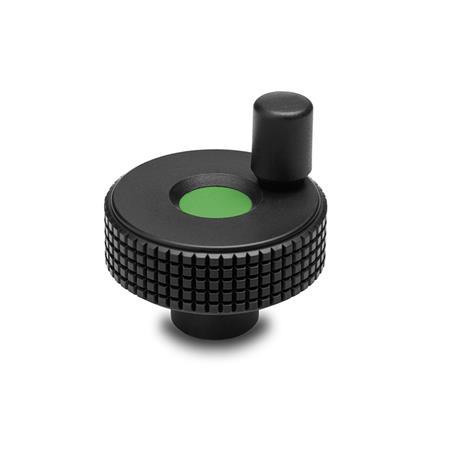

GN 735 Control Handwheels
ELESA original design MBT+l
Type
| D | with revolving knob |
| d1 | d2 H9 Bore | d3 | d4 | d5 | b | l1 | l2 | l3 | l4 | r |
|---|---|---|---|---|---|---|---|---|---|---|
| 40 | B 6 | 17 | M 4 | 13,5 | 14 | 26,5 | 14 | 20 | 4 | 12,5 |
| 50 | B 6 | 20 | M 5 | 13,5 | 17 | 33 | 18 | 20 | 5 | 16,5 |
| 60 | B 8 | 23 | M 5 | 16 | 20,5 | 39 | 20 | 23 | 6 | 20,5 |
| 70 | B 10 | 24 | M 5 | 16 | 21,5 | 42 | 25 | 23 | 6 | 25 |
| 85 | B 10 | 29 | M 5 | 16 | 20 | 30,5 | 22 | 23 | 6 | 32,5 |
| 100 | B 10 | 35 | M 5 | 16 | 20 | 31 | 22 | 23 | 6 | 40 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polypropylene PP)
Color of the cover cap:
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
Hub bushing
Brass
Grub screw DIN 916
With internal hexagon and serrated point
Revolving knobs GN 595
RoHS
Technopolymer (Polypropylene PP)
- Reinforced, shock-resistant
- Temperature resistant up to 90 °C
- Black, matte
Color of the cover cap:
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
Hub bushing
Brass
Grub screw DIN 916
With internal hexagon and serrated point
Revolving knobs GN 595
- Plastic, Thechnopolymer (Polyamide PA)
Black, matte - Spindle steel
Zinc plated, blue passivated
RoHS
Information
Control handwheels GN 735 are used for setting operations with low torque.
Coarse setting is made by means of the cylindrical handle (fingertip grip) followed by fine setting using the knurled rim of the handwheel.
| How to order |
| ||||||||
GN 735-60-B8-D-DRT |
RoHS compliant:
-
-
Weight:
-
-
