Steel, Blackened

GN 212.3 Adjustable Tension Levers, with threaded insert

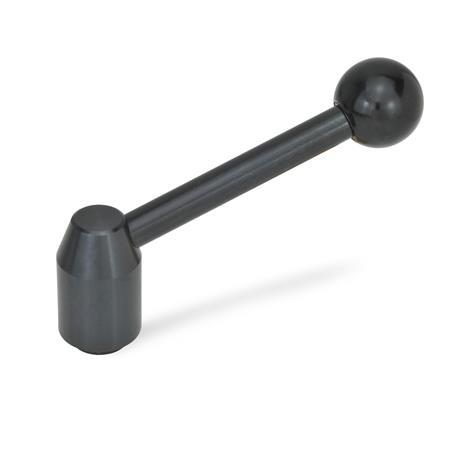

Adjustable Tension Levers with threaded insert GN 212.3 thumbnail

Adjustable Tension Levers with threaded insert GN 212.3 sketch

Type

E	Angled lever
D	Straight lever

Show filter

d₁	d₂			d₃	d₄	d₅	h₁	h₂	h₃	h₄ ≈ Type E	Type D	h₅ Stroke	l₂ ≈ Type E	Type D	l₃ ≈	t min.

21	M 6	M 8	-	13,5	8	20	33,5	31	1	59	36	4	75	80,5	70	11
24	M 8	M 10	-	16	10	25	40	37	2,5	75	43,5	4,5	101	108	96	14
28	M 10	M 12	-	19	12	30	48,5	44,5	4,5	89	52,5	4,5	116	124	110	17
33	M 12	M 14	M 16	23	12	32	55	51,5	6	100,5	60	5,5	131,5	140,5	124	22
40	M 16	M 20	-	28	14	35	68	64	6	118	71,5	5,5	148	158	138	36

Filter combination produces no result.

Specification

Steel
Blackened

Ball knobs DIN 319
Plastic, Duroplast
Black, shiny finish

Safety circlip
Plastic (Polyacetal POM)

Plastic Characteristics

RoHS

On request

With inch threads

Information

Adjustable tension levers GN 212.3 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is re-quired. The threaded insert is connected with the hub via serrations which can be disengaged.

Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping posi-tion. On releasing the lever it will automatically re-engage.

How to order
