in Both End Positions Retained

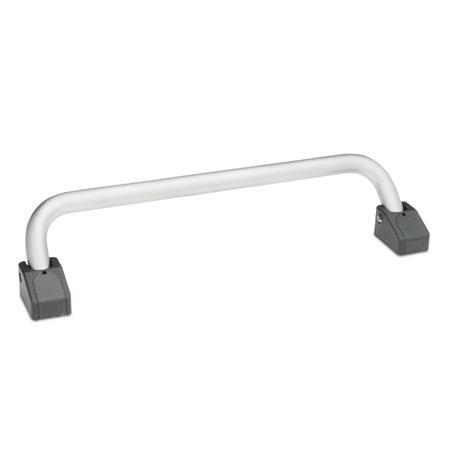

GN 425.5 Stainless Steel Folding Handles
| Length l ±0,25 | h1 | h2 | h3 | F1 Static load in N folded out |
|---|---|---|---|---|
| 100 | 34 | 44,5 | 55 | 500 |
| 120 | 34 | 44,5 | 55 | 500 |
| 180 | 34 | 44,5 | 55 | 500 |
Filter combination produces no result.
Specification
Handle
Stainless steelNI AISI 303
Matte, shot-blasted
Attachment part
Plastic
Technopolymer (Polyamide PA)
Cover
Plastic
Technopolymer (Polyamide PA)
RoHS
Stainless steelNI AISI 303
Matte, shot-blasted
Attachment part
Plastic
Technopolymer (Polyamide PA)
- Temperature resistant up to 100 °C
- Black, matte finish
Cover
Plastic
Technopolymer (Polyamide PA)
- Temperature resistant up to 100 °C
- Black-gray, matte finish
RoHS
Information
Folding handles GN 425.5 are used in places where the handle must not protrude or protrude only a short distance.
The handle is locked in place in the resting position by means of a spring-loaded (spring disks) thrust bolt.
The static load capacity value given in the table is an approximate value which, if exceeded, may result in permanent deformation or fracture of the plastic attachment part. The folding handle GN 425.2 may be used as an alternative.
| How to order |
| ||||
GN 425.5-100-NI |
