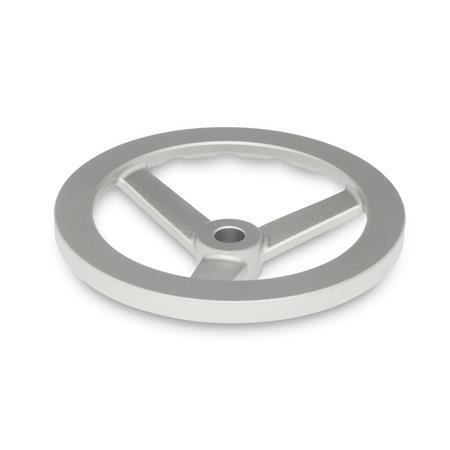

GN 949 Stainless Steel Handwheels, matt shot blasted
Bore code
| B | Without keyway |
| K | With keyway |
Type
| A | Without handle |
| D | With revolving handle |
| d1 | d2H8 Bore | d3 | b | l1 | l2 ≈ | l3 ≈ | r | Ø Handle | No. of spokes | |
|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 10 | 12 | 20 | 7 | 15 | 27,5 | 45 | 44 | 18 | 3 |
| 125 | 12 | 14 | 24 | 9 | 16 | 28,5 | 55 | 55 | 21 | 3 |
| 140 | 14 | 16 | 28 | 10 | 18 | 30,5 | 70,5 | 62 | 23 | 3 |
| 160 | 14 | 16 | 31 | 11 | 20 | 35,5 | 70,5 | 71 | 23 | 3 |
| 200 | 18 | 20 | 36 | 14 | 23 | 39 | 70,5 | 90 | 23 | 3 |
Filter combination produces no result.
Specification
Stainless steel precision casting AISI CF-8
Revolving handle similar to GN 598.1
Keyway P9 DIN 6885 Page 1
Cross holes GN 110
Stainless Steel Characteristics
ISO Fundamental Tolerances
RoHS
- Hub machined
- Rim turned
- Matte shot-blasted
Revolving handle similar to GN 598.1
- Plastic, Duroplast
Black, shiny finish - Spindle, stainless steel AISI 304
Keyway P9 DIN 6885 Page 1
Cross holes GN 110
Stainless Steel Characteristics
ISO Fundamental Tolerances
RoHS
Information
The design of stainless steel handwheels GN 949 complies with the requirements of hygiene standards.
The revolving handles are made of duroplast which, in general, provides good resistance to the impact of chemical agents.
| How to order |
| ||||||||
GN 949-125-B12-A |
