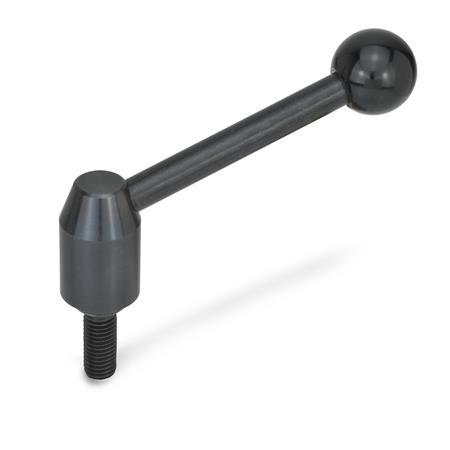

GN 212.3 Adjustable Tension Levers

Adjustable Tension Levers GN 212.3 thumbnail

Adjustable Tension Levers GN 212.3 sketch

Type

E	Angled lever
D	Straight lever

Show filter

d₁	d₂	Length l1								d₃	d₄	d₅	h₁	h₂	h₃	h₄ ≈ Type E	Type D	h₅ Stroke	l₂ ≈ Type E	Type D	l₃ ≈

21	M 8	12	16	20	25	32	40	50	63	13,5	8	20	33,5	31	1	59	36	4	75	80,5	70
21	M 10	20	25	32	40	50	63	80	-	13,5	8	20	33,5	31	1	59	36	4	75	80,5	70
24	M 10	16	20	25	32	40	50	63	80	16	10	25	40	37	2,5	75	43,5	4,5	101	108	96
24	M 12	25	32	40	50	63	80	-	-	16	10	25	40	37	2,5	75	43,5	4,5	101	108	96
28	M 10	16	20	25	32	40	50	63	-	19	12	30	48,5	44,5	4,5	89	52,5	4,5	116	124	110
28	M 12	16	20	25	32	40	50	63	80	19	12	30	48,5	44,5	4,5	89	52,5	4,5	116	124	110
33	M 12	25	32	40	50	63	-	-	-	23	12	32	55	51,5	6	100,5	60	5,5	131,5	140,5	124
33	M 16	32	40	50	63	80	-	-	-	23	12	32	55	51,5	6	100,5	60	5,5	131,5	140,5	124
40	M 16	40	50	63	80	-	-	-	-	28	14	35	68	64	6	118	71,5	5,5	148	158	138
40	M 20	40	50	63	80	-	-	-	-	28	14	35	68	64	6	118	71,5	5,5	148	158	138

Filter combination produces no result.

Specification

Steel
Blackened
Screw
Property class 5.8

Ball knobs DIN 319
Plastic, Duroplast
Black, shiny finish

Safety circlip
Plastic (Polyacetal POM)

Strength Values of Screws

Plastic Characteristics

RoHS

On request

With inch threads

Information

Adjustable tension levers GN 213.3 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged.

Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping posi-tion. On releasing the lever it will automatically re-engage.

How to order
