Push to Engage, Threaded Bushing Steel

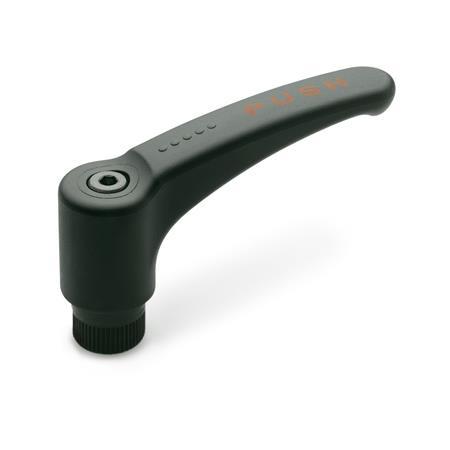

GN 604.2 Safety Hand Levers
ELESA original design ERS.
| l1 | d1 | d2 | d3 | h1 | h2 | h3 | h4 Stroke | t min. | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 44 | M 4 | M 5 | M 6 | 12 | 15,5 | 29 | 9 | 36 | 3,5 | 10 |
| 63 | M 6 | M 8 | - | 15 | 19 | 37 | 12 | 48 | 4 | 13 |
Filter combination produces no result.
Specification
Handle
Plastic
Threaded bushing and retaining screw
Steel, blackened
RoHS
Plastic
- Glass fiber reinforced
- Temperature resistant up to 130 °C
- Black-gray, RAL 7021, matte finishSG
Threaded bushing and retaining screw
Steel, blackened
RoHS
Information
The design and handling of the adjustable hand lever GN 604.2 satisfy the high standards of the Ergostyle® product family.
Safety hand levers GN 604.2 are used where the inadvertent loosening or readjustment can result in accidents.
If not operated, the lever is not linked to the threaded insert, i.e. the hand lever turns freely.
As soon as the lever hub is pushed down, both serrations will engage, allowing the fixture to be released or clamped.
After "releasing", the connection disengages through spring tension.
