with and without Lock

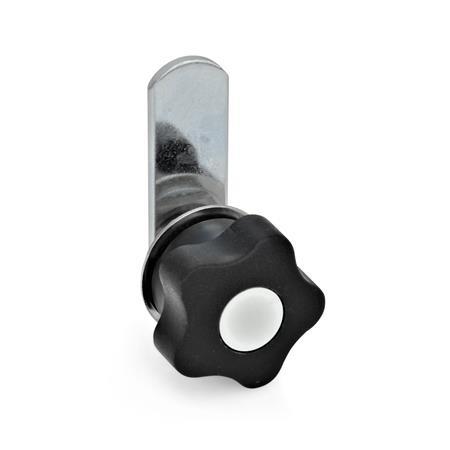

GN 217 Latches
ELESA original design VC.308/309
Type
| A | With straight latch |
| B | With offset latch |
Version
| SL | Lockable by anti-clockwise turn |
| SR | Lockable by clockwise turn |
| OS | Without lock, moveable by 90 degrees |
| d1 | a1 Type A | a2 Type B | b | d2 | h1 | h2 | l1 ±0,5 Type A | l2 ±0,5 Type B |
|---|---|---|---|---|---|---|---|---|
| 40 | 50 | 48 | 20 | 29 | 25 | 11 | 10 | 18 |
Filter combination produces no result.
Specification
Star knob
Plastic (Polypropylene PP)
Latch arm
Sheet steel, zinc plated
Key
Brass, nickel plated
Other parts
Steel zinc plated
resp. brass or stainless steel
RoHS
Plastic (Polypropylene PP)
- Black, matte finish
- Temperature resistant up to 90 °C
Latch arm
Sheet steel, zinc plated
Key
Brass, nickel plated
Other parts
Steel zinc plated
resp. brass or stainless steel
RoHS
On request
Latches with identical lock
Latches with central key
Latches with central key
Information
Latches GN 217 with lock are supplied with two keys. The keys are numbered, there are 480 different combinations.
The key can be withdrawn from the lock in both end positions.
| How to order |
| ||||||
GN 217-40-A-SR |
