Aluminum, with 4 Mounting Holes

GN 162 Base Plate Connector Clamps

Base Plate Connector Clamps GN 162 thumbnail

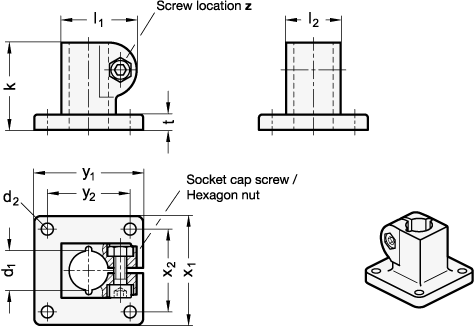

Base Plate Connector Clamps GN 162 sketch

Identification no.

2	With stainless steel socket cap srew DIN 912

Show filter

d₁ Bore	d₂	k Clamping length	l₁	l₂	t	x₁	x₂	y₁	y₂	z Screw location

B 10	5,5	40	34,5	25	7	50	38	50	38	M6-20
B 12	5,5	40	34,5	25	7	50	38	50	38	M6-20
B 14	5,5	40	34,5	25	7	50	38	50	38	M6-20
B 15	5,5	40	34,5	25	7	50	38	50	38	M6-20
B 16	5,5	40	34,5	25	7	50	38	50	38	M6-20
B 18	5,5	40	34,5	25	7	50	38	50	38	M6-20

Filter combination produces no result.

Specification

Aluminum

Powder coated
Black, RAL 9005, textured finishSW
Plain, Matte shot-blastedBL

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Stainless Steel Characteristics

RoHS

On request

With inch bores

Information

The clamping bore of base plate connector clamps GN 162 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

At the screw location z, the socket cap screw reduces the bore cross-section for clamping.
