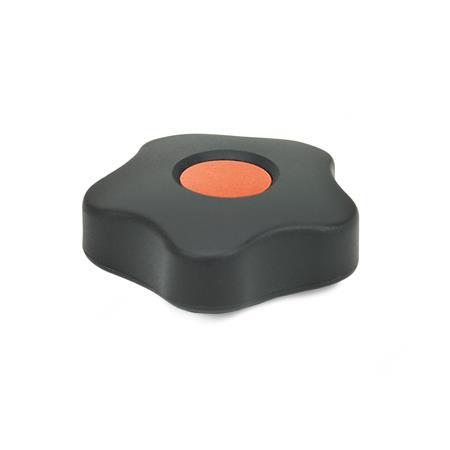

GN 5331 Star Knobs, bushing threaded / square

Star Knobs bushing threaded square GN 5331 thumbnail

ELESA original design VCRT. Info

Star Knobs bushing threaded square GN 5331 sketch

Type

B	With cover cap

Show filter

d₁	d₂ Thread		s H9 Square				d₃	d₄ -0,5	h₁	h₂	l₁	l₂	l₃ +0,5

32	M 5	M 6	V 5	V 6	-	-	17	11	17	1	8	13,5	6,5
40	M 6	M 8	V 6	-	-	-	17	13	17	1	10	14,5	9,5
50	M 8	M 10	V 6	V 7	-	-	19	16	20	1,2	10	17,5	9,5
63	M 10	M 12	V 6	V 7	V 8	-	22,5	20	21,5	1,3	10	19	9,5
74	M 10	M 12	V 7	V 8	V 9	V 10	26,5	20	24,5	2	15	21	13,5
95	M 16	-	V 8	V 10	-	-	32	18	29,5	4,5	15	26,5	13,5

Filter combination produces no result.

Specification

Plastic
Technopolymer (Polyamide PA)

Glass fiber reinforced
Temperature resistant up to 130 °C
Black, matte finish

Color of the color cap:
Orange, RAL 2004, matte finishDOR DOR

Gray, RAL 7035, matte finishDGR DGR

Yellow, RAL 1021, matte finishDGB DGB

Blue, RAL 5024, matte finishDBL DBL

Red, RAL 3000, matte finishDRT DRT

Green, RAL 6017, matte finishDGN DGN

Threaded bushing / square bushing
Brass

Plastic Characteristics

ISO Fundamental Tolerances

RoHS

Information

Characteristic of the star knobs GN 5331 is the 5 lobes. They not only give the knobs a specific style but this shape has also enabled the operator to achieve a higher torque.
