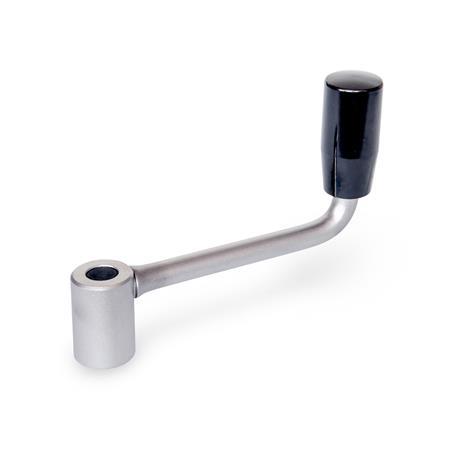

GN 369.5 Stainless Steel Cranks

Stainless Steel Cranks GN 369.5 thumbnail

Type

A	without slot
N	with slot

Show filter

Length l ≈	d₁ H9 Bore	d₂	h₁	h₂ ≈	h₃ ≈	h₄ ≈	t +0,5	Ø Handle	Socket cap screw DIN 912

63	B 10	18	28	18	74	40	18	18	M 5
80	B 10	18	28	18	74	40	18	18	M 5
100	B 12	20	30	20	88	50	20	21	M 6
125	B 12	20	30	20	88	50	20	21	M 6

Filter combination produces no result.

Specification

Stainless steel AISI 304

Shot-blasted
Crank butt-welded

Cover cap
Plastic, black

Revolving handle

Plastic, Duroplast
Black, shiny finish
Temperature resistant up to 110 °C

Cross holes GN 110

ISO Fundamental Tolerances

Stainless Steel Characteristics

RoHS

Information

Stainless steel cranks GN 369.5 feature a compact design and are used for light drive and positioning tasks. Thanks to the material used, the cranks are also suitable for more aggressive environments.

The slot of type N easily transfers the rotary movement to the shaft by means of a transverse pin mounted in the shaft. The crank can be connected removably or permanently fastened axially with a socket head cap screw DIN 912. Type A can be ordered with transverse holes for GN 110.

Thanks to a simple manufacturing process, it is relatively easy and inexpensive to produce these cranks as special designs.
