Steel Sheet Metal, with Rubber Pad, with Mounting Flange

GN 32 Leveling Feet

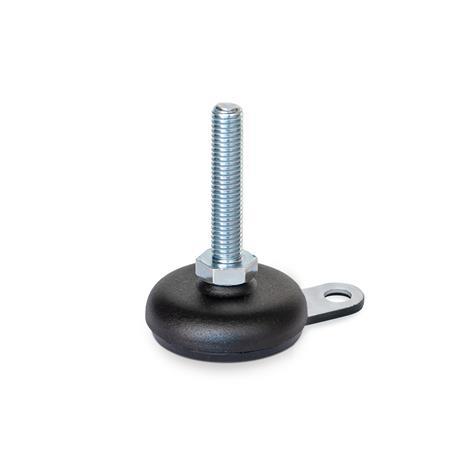

Leveling Feet GN 32 thumbnail

Zoom

Zoom

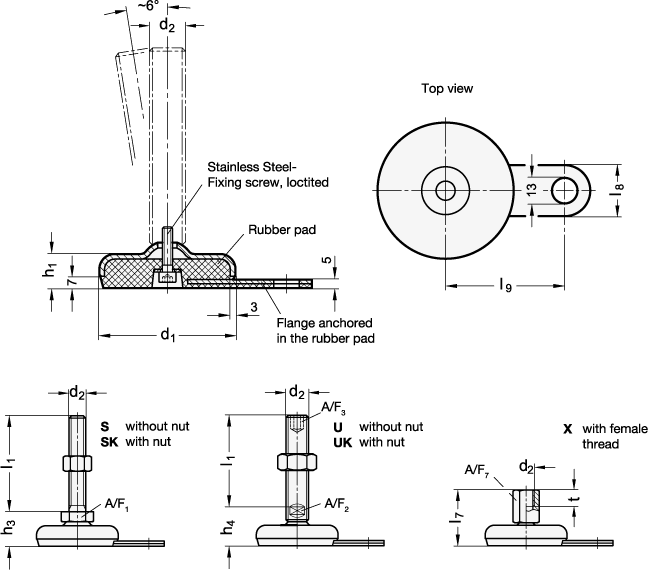

Leveling Feet GN 32 sketch

Type (Base)

A1	Steel, zinc plated, rubber inlaid, black
A5	Steel, plastic coated black, rubber inlaid, black

Version (Screw)

S	Without nut, external hexagon at the bottom
SK	With nut, external hexagon at the bottom
U	Without nut, hexagon socket at the top and wrench flat at the bottom
UK	With nut, hexagon socket at the top and wrench flat at the bottom
X	External hexagon with internal thread

Show filter

d₁	d₂	l₁ Version S / SK				Version U / UK						l₇ Version X	h₁	l₈	l₉

50	M 8	40	50	63	-	-	-	-	-	-	-	40	18	25	45
50	M 10	50	60	80	100	-	-	-	-	-	-	43	18	25	45
50	M 12	60	80	100	125	-	-	-	-	-	-	47	18	25	45
50	M 16	-	-	-	-	75	100	125	150	200	250	52	18	25	45
60	M 8	40	50	63	-	-	-	-	-	-	-	41	19	25	50
60	M 10	50	60	80	100	-	-	-	-	-	-	44	19	25	50
60	M 12	60	80	100	125	-	-	-	-	-	-	48	19	25	50
60	M 16	-	-	-	-	75	100	125	150	200	250	53	19	25	50
80	M 8	40	50	63	-	-	-	-	-	-	-	42	20	30	70
80	M 10	50	60	80	100	-	-	-	-	-	-	45	20	30	70
80	M 12	60	80	100	125	-	-	-	-	-	-	49	20	30	70
80	M 16	-	-	-	-	75	100	125	150	200	250	54	20	30	70
80	M 20	-	-	-	-	75	100	125	150	200	250	62	20	30	70
80	M 24	-	-	-	-	100	125	150	200	300	-	-	20	30	70
100	M 8	40	50	63	-	-	-	-	-	-	-	43	21	30	80
100	M 10	50	60	80	100	-	-	-	-	-	-	46	21	30	80
100	M 12	60	80	100	125	-	-	-	-	-	-	50	21	30	80
100	M 16	-	-	-	-	75	100	125	150	200	250	55	21	30	80
100	M 20	-	-	-	-	75	100	125	150	200	250	63	21	30	80
100	M 24	-	-	-	-	100	125	150	200	300	-	-	21	30	80

Filter combination produces no result.

d₁	d₂	h₃	h₄	A/F₁	A/F₂	A/F₃	A/F₇	t

50	M 8	26	-	17	-	-	14	8
50	M 10	26	-	17	-	-	14	10
50	M 12	26	-	17	-	-	17	12
50	M 16	-	32	-	12	8	22	16
60	M 8	27	-	17	-	-	14	8
60	M 10	27	-	17	-	-	14	10
60	M 12	27	-	17	-	-	17	12
60	M 16	-	33	-	12	8	22	16
80	M 8	28	-	17	-	-	14	8
80	M 10	28	-	17	-	-	14	10
80	M 12	28	-	17	-	-	17	12
80	M 16	-	34	-	12	8	22	16
80	M 20	-	35	-	15	10	27	20
80	M 24	-	38	-	19	12	-	-
100	M 8	29	-	17	-	-	14	8
100	M 10	29	-	17	-	-	14	10
100	M 12	29	-	17	-	-	17	12
100	M 16	-	35	-	12	8	22	16
100	M 20	-	36	-	15	10	27	20
100	M 24	-	39	-	19	12	-	-

Filter combination produces no result.

Specification

Base plate, steel sheet metal

Type A1:
Steel, zinc plated, blue passivated
Type A5:
Steel, powder coated
Black, RAL 9005

Flange, sheet metal
Steel, zinc plated, blue passivated

Threaded stem
Steel, zinc plated, blue passivated

Hexagon nut ISO 4032
Steel, zinc plated, blue passivated

Rubber pad, inlaid

Black, NBR (Perbunan^®)
80±5 Shore A

Elastomer Characteristics

Load rating of leveling feet GN 30 / GN 32

RoHS

Information

Leveling feet GN 32 will be delivered mounted and are not removable.

see also...

How to order

1	d₁
2	d₂
3	l₁ (l₇)
4	Type (Base)
5	Version (Screw)

GN 32-100-M20-150-A1-U
