Aluminum, Black Anodized
GN 736.1 Control Handwheels with Scale Lug
Bore code
| B | Without keyway |
| K | With keyway |
| Z | With collet |
Type
| A | Without handle |
| D | With revolving handle |

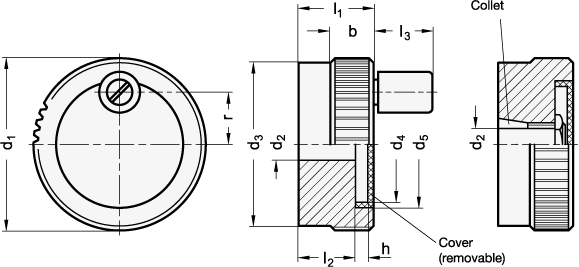

| d1 | d2 H8 Bore | d3 | d4 | d5 | b -0,5 | h | l1 | l2 | l3 ≈ | r | Ø Handle |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 10 | 50 | 37 | 39,5 | 13 | 3,8 | 23 | 17 | 19 | 15,5 | 13 |
| 62 | 10 | 60 | 47 | 49,5 | 13 | 3,8 | 23 | 17 | 21 | 20,5 | 14 |
Specification
Black anodized
Cover
Plastic, light gray
Collet / hexagon nut
Brass
Revolving cylindrical handles GN 599.5
- Plastic, Technopolymer
Black, matte finish - Spindle
Stainless steel AISI 303
Keyway P9 DIN 6885 Page 1
ISO Fundamental Tolerances
Plastic Characteristics
Stainless Steel Characteristics
RoHS
Information
Control handwheels GN 736.1 are used for setting operations with low torque. Coarse setting is made by means of the cylindrical handle (fingertip grip) followed by fine setting using the knurled rim of the knob.
The model fitted with collet offers an absolutely reliable mounting on the shaft and at the same time allows an easy setting of the adjustable scale ring wheel. The scale is wear resistant and easily legible since the engraved alu coloured numbers contrast with the black anodized surface. Besides the standard scale (Coding S) the control handwheels can be supplied with any type of graduation.
Full details of the available graduations, numbering sequence, number position and type of scale see under "How to order - Graduations".
Prices for scales on request!
see also...
| How to order |
| ||||||||
GN 736.1-62-B10-A |
