Aluminum, with Scale Ring

GN 726.2 Control Knobs, black anodized, scale ring plastic

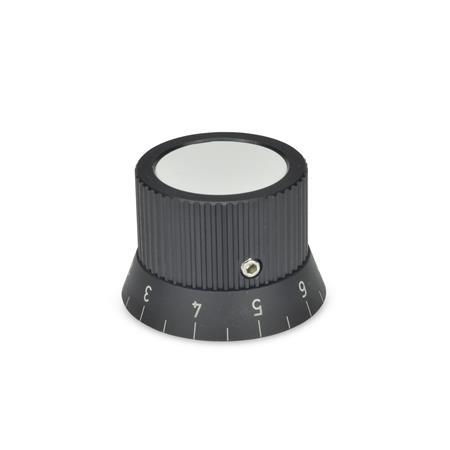

Control Knobs black anodized scale ring plastic GN 726.2 thumbnail

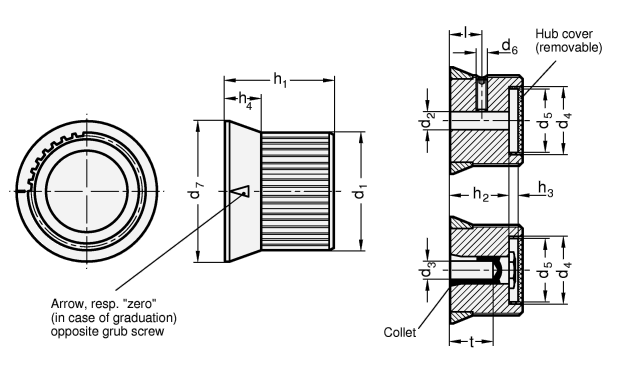

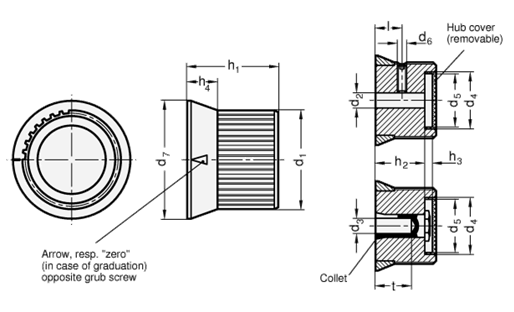

Control Knobs black anodized scale ring plastic GN 726.2 sketch

Type

A	With arrow
B	Neutral, without indicator point or scale
S	With scale 0...9, 20 graduations

Identification no.

1	With grub screw
2	With collet

Show filter

d₁	d₂ H8 Bore		d₃ Collet	d₄	d₅	d₆	d₇	h₁	h₂	h₃	h₄	Length l	t

22	B 5	-	-	16	14	M 4	27,5	22	16	4,3	8	12,5	-
27	B 6	-	Z 6	20	18	M 4	33,5	26	20	4,3	9	14	14
34	B 6	B 8	Z 8	25	23	M 5	41	30	24	4,2	10	15	17
42	B 8	B 10	Z 10	32	30	M 5	50	34	28	4	11	16	20

Filter combination produces no result.

Specification

Aluminum
Anodized, black

Scale ring
Plastic, black
Pressed-on

Arrow (Type A) and scale (Type S)
White, engraved with laser precision

Hub cover
Plastic, light gray

Collet / hexagon nut
Brass

Stainless steel grub screw DIN 916
with internal hexagon and serrated point

ISO Fundamental Tolerances

RoHS

On request

Special graduations
see „How to Order Graduations“

Information

The light gray cover of the control knobs GN 726.2 shrouds the fixing components as well as the shaft end. The cover also lends itself for a logo or other symbols.

The collet version permits a simple adjustment of the types with scale or arrow.

Besides the standard scale (Type S) the control knobs can be supplied with any type of graduation.

Regarding design, numbering run, numbering position and numbering sequence of the scale please see the layout for scale knobs on the order sheet „How to Order Graduations“
