GN 928 Stainless Steel Shaft Clamping Units "Trueround"

Stainless Steel Shaft Clamping Units Trueround GN 928 thumbnail

Stainless Steel Shaft Clamping Units Trueround GN 928 sketch

Show filter

d₁ h11	d₂	d₃ Round workpiece	d₄ H7	d₅	e +0,2	l₁ max.	l₂	l₃	A/F	Max. tightening torque in Nm	Code No. Mounting tool

8	M 4	6 - 10	8	M 2,5	d₃ / 2 + 2,8	22	8	4	3	2,9	GN 928.1-3
10	M 5	10 - 15	10	M 3	d₃ / 2 + 3,3	30	10	5	4	6	GN 928.1-4
12	M 6	15 - 20	12	M 4	d₃ / 2 + 3,5	36	12	6	5	10	GN 928.1-5
16	M 8	20 - 30	16	M 5	d₃ / 2 + 4	48	16	8	6	25	GN 928.1-6
20	M 10	30 - 40	20	M 6	d₃ / 2 + 4,8	60	20	10	8	46	GN 928.1-8
25	M 12	40 - 60	25	M 8	d₃ / 2 + 5,6	72	25	12	10	82	GN 928.1-10
30	M 16	60 - 125	30	M 10	d₃ / 2 + 7,9	85	30	16	14	206	GN 928.1-14

Filter combination produces no result.

Specification

Stainless steelNI AISI 303
Socket cap screw DIN 912
Stainless steel

Stainless Steel Characteristics

Application Video trueround

ISO Fundamental Tolerances

RoHS

Accessory

Mounting tools GN 928.1
(Code no. see table)

Information

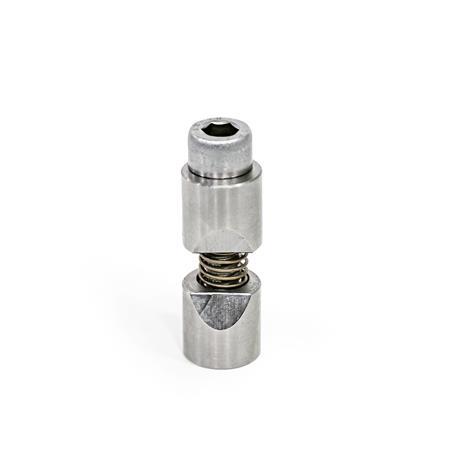

With the stainless steel shaft clamping unit "trueround" GN 928, round workpieces from 6 to 125 mm can be rapidly, accurately and economically clamped.

The threaded hole d₅ can be used for attaching a jig or fixture or a fixing screw for holding the clamping unit in an axial position during an assembly operation.
