Plastic

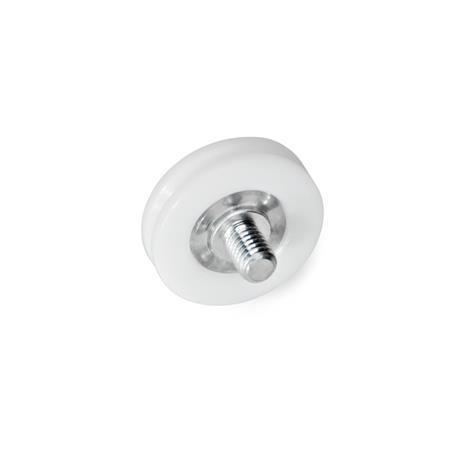

GN 753 Guide Rollers

Type

ZL	Cylindrical
KV	Convex
KF	Wedge-shaped
KK	Concave
KR	Circular (O-Ring)

Identification no.

1	With bore
2	Stud with external thread

Show filter

d₁	d₂ Bore Type ZL	Type KV Type KK Type KF Type KR	d₃ Thread	d₄ Type ZL	Type KV Type KK Type KF Type KR	d₅	d₆	d₇	d₈	b	r₁	r₂	r₃	Load bearing radial capacity in N max. 300 U/min Type ZL	Type KV	Type KK Type KF Type KR

19	B 5	B 5	M 6	8,2	8,2	17	17	24	3,5	6	5	1,75	0,6	49	49	39
19	B 6	-	-	8,2	-	-	-	-	-	6	-	-	-	49	-	-
22	B 6	B 6	M 6	9,5	9,5	19,2	19	29	5	7	5	2,5	0,6	196	196	156
22	B 8	-	-	11	-	-	-	-	-	7	-	-	-	196	-	-
26	B 6	B 6	M 6	9,5	9,5	23,2	23	33	5	7	5	2,5	0,6	196	196	156
26	B 10	-	-	13	-	-	-	-	-	8	-	-	-	196	-	-

Filter combination produces no result.

Specification

Outer ring
Plastic (Polyacetal POM)
Working temperature: 0 °C... 40 °C

Inner ring / balls
Steel, plain

Threaded stud
Steel, zinc plated

O-Ring
Rubber NBR (Perbunan^®)
70 Shore A

Plastic Characteristics

Elastomer Characteristics

RoHS

On request

Guide rollers with rivet spigot

Information

Guide rollers GN 753 can be used as guides, bearings or supports for small to medium loads. They can also be used to create custom linear guide rail systems.

With the radial load bearing capacity given in the table, the guide rollers reach a minimum run time of 1 million revolutions. In general, the guide rollers should not be used under axial load.
