Aluminum, Fixed Bearing Flange

GN 327 Safety Handwheels, rim polished

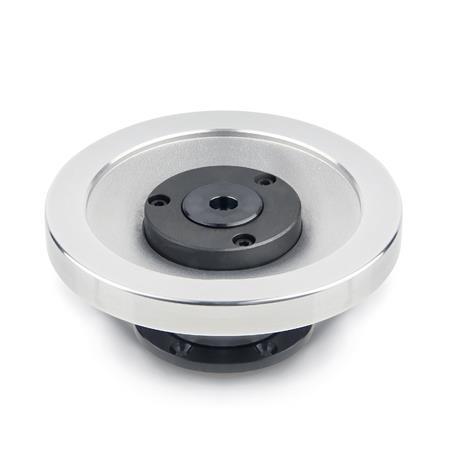

Safety Handwheels rim polished GN 327 thumbnail

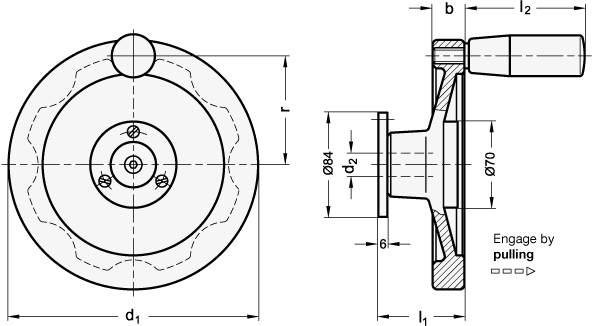

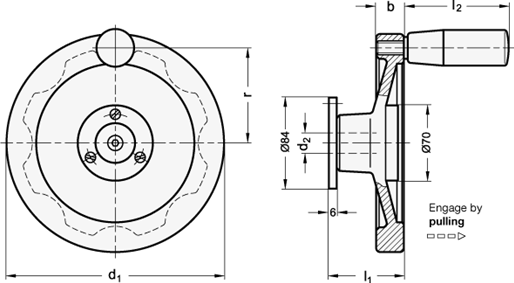

Safety Handwheels rim polished GN 327 sketch

Type

A	Without handle
D	With revolving handle

Identification no.

1	With bearing bushing
2	With centering ring

Show filter

d₁	d₂ H7 Bore with keyway				b	l₁	l₂	r	Ø Handle

160	K 14	K 16	K 18	K 20	18	66	82,5	71	26
200	K 14	K 16	K 18	K 20	20,5	68	82,5	89	26

Filter combination produces no result.

Specification

Handwheel body
Aluminum

Rim turned and polished

Coupling elements

Steel, nitrided
Bearing surface ground resp.
PTFE-coated
Bearing flange blackened

Revolving handles GN 598

Plastic, Duroplast
Black, shiny finish
Spindle steel
Zinc plated, blue passivated

Keyway P9 DIN 6885 Page 2

ISO Fundamental Tolerances

Plastic Characteristics

RoHS

Information

Safety handwheels GN 327 feature the ultimate in health and safety at work standards because the handwheel, if disengaged, is mounted on a fixed component, the bearing flange. The wheel is fully disengaged from the rotating shaft.

The bearing flange can also accept the bearing of the shaft via the bearing bushing (identification no. 1). This bearing bushing is a dry bearing (DU bushing). Normally, the shaft has a separate bearing and the bearing bushing serves to center the bearing flange.

Centering can also be effected by a centering ring (identification no. 2) if the appropriate bore hole has been made at the machine side. In this case there is no need for the bearing bushings and no bearing friction (heating) will occur.
