Steel, Blackened

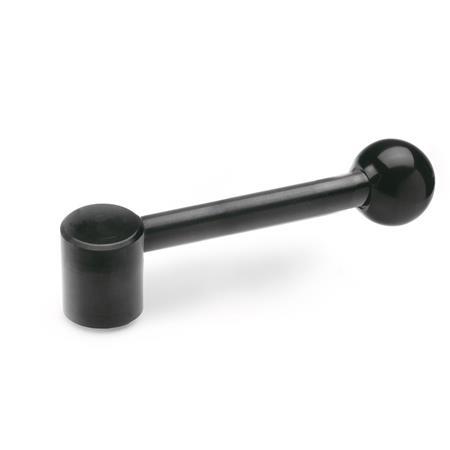

GN 212 Tension Levers
Type
| C | Angled lever with plain bore, Tol. H7 |
| E | Angled lever with thread |
| B | Straight lever with plain bore, Tol. H7 |
| D | Straight lever with thread |
| d1 | d2 Thread Type E | Type D | d3 H7 Bore Type C | Type B | d4 | d5 | h1 | h2 ≈ Type C Type E | Type B Type D | l1 ≈ Type E Type C | Type B Type D | l2 ≈ | t1 min. | t2 min. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22 | M 10 | M 10 | B 10 | B 10 | 8 | 20 | 37 | 67 | 40,5 | 89,5 | 96 | 85 | 15 | 19 |
| 25 | M 12 | M 12 | B 12 | B 12 | 10 | 25 | 42 | 76 | 47 | 100,5 | 107,5 | 95 | 18 | 21 |
| 28 | M 12 | M 12 | B 12 | B 12 | 12 | 30 | 47 | 87 | 53 | 114 | 122 | 108 | 18 | 23 |
| 32 | M 16 | M 16* | B 16 | B 16* | 12 | 32 | 52 | 98 | 59 | 133 | 142 | 126 | 23 | 28 |
| 36 | M 16 | M 16 | B 16 | B 16* | 14 | 35 | 58 | 108 | 64,5 | 146 | 156 | 138 | 24 | 28 |
| 40 | M 20 | M 20* | B 20 | B 20 | 16 | 40 | 64 | 120 | 72 | 162,5 | 174 | 154 | 27 | 30 |
Filter combination produces no result.
** not available from stock, requires a minimum order quantity
Specification
Steel
Blackened
Ball knobs DIN 319
Plastic, Duroplast
Black, shiny finish
RoHS
Blackened
Ball knobs DIN 319
Plastic, Duroplast
Black, shiny finish
RoHS
Information
Tension levers GN 212 are used as clamping element as well as operating levers.
| How to order |
| ||||||
GN 212-28-B12-C |
