GN 2370 Stainless Steel Spacer Plates

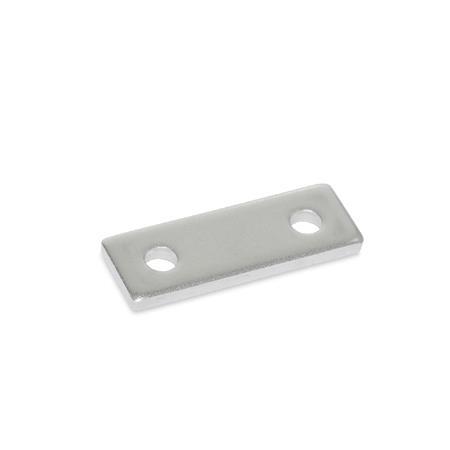

Stainless Steel Spacer Plates GN 2370 thumbnail

Stainless Steel Spacer Plates GN 2370 sketch

Show filter

l₂	s				b₁	b₂	d	l₁	m₁	m₂	Suitable for hinges with hole spacing m₂ GN 235; GN 337; GN 337.1 GN 437; GN 7231; GN 7233; GN 7237	GN 237 GN 237.1	GN 237.3 (Type A)	GN 437.1; GN 437.2 GN 437.3; GN 437.4

30	1	1,5	3	5	10,8	6	4	30	18	18	-	x	-	-
40	1	1,5	3	5	14,5	7,5	5	40	25	25	x	x	-	-
50	1	1,5	3	5	18	10	6	50	30	30	x	x	x	-
60	1	1,5	3	5	21,5	12,5	8	60	36	36	x	x	x	x

Filter combination produces no result.

Height compensation	Plate thickness s		Height compensation	Plate thickness s		Height compensation	Plate thickness s

1	1	-	3	3	-	6	3 + 3
1,5	1,5	-	4	3 + 1	-	6,5	5 + 1,5
2	1 + 1	-	4,5	3 + 1,5	-	8	5 + 3
2,5	1 + 1,5	-	5	5	-	10	5 + 5

Filter combination produces no result.

Specification

Stainless steelNI AISI 304
Matte, groundMT

Stainless Steel Characteristics

RoHS

Information

Tolerances of chamfers, different sheet metal thicknesses or the use of seals could mean that the mounting surfaces of the hinges on the frame and door do not have the desired separating distance.

Stainless steel spacer plates GN 2370 are designed as accessories for multiple families of hinges, and their dimensions allow them to be used as shims either individually or in combination to achieve the desired position or height compensation.

The table includes a number of potential compensation heights which can be accomplished by shimming with one or two spacer plates.
