Zinc Die Casting

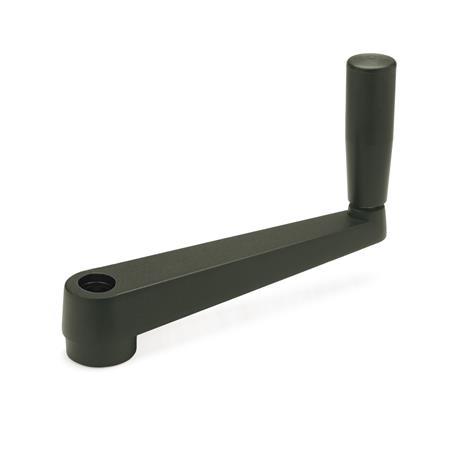

GN 471.1 Cranked Handles, Zinc die casting, plastic coated
| Length l | d1 H7 Bore | s H11 Square | d2 | d3 | h1 | h2 | h3 | h4 ≈ | Ø Handle GN 598 |
|---|---|---|---|---|---|---|---|---|---|
| 50 | B 8 | V 8 | 16 | 18 | 18 | 10 | 10 | 28,5 | 14 |
| 64 | B 10 | V 10 | 19 | 22 | 20 | 11 | 12 | 42,5 | 18 |
| 80 | B 10 | V 10 | 23 | 26 | 24 | 14 | 14 | 52,5 | 21 |
| 100 | B 12 | V 12 | 27 | 30 | 28 | 17 | 15 | 67,5 | 23 |
Filter combination produces no result.
Specification
Body
Zinc die casting
Revolving handles GN 598
RoHS
Zinc die casting
- Powder coated
Black, textured finish - Contact face of hub machined
Revolving handles GN 598
- Plastic, Technopolymer
Black, matte finish - Spindle steel
Zinc plated, blue passivated
RoHS
Information
| How to order |
| ||||
GN 471.1-50-V8 |
RoHS compliant:
-
-
Weight:
-
-
