Pendulum System, Digital / Analog Indication

GN 000.3 Position Indicators

ELESA original design GW12 Info

Type

R	Numbers ascending clockwise
L	Numbers ascending anti-clockwise

Show filter

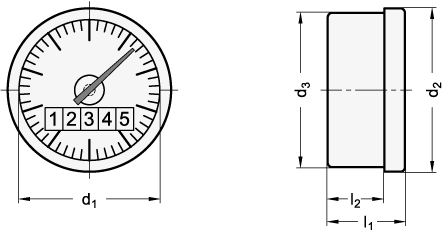

d₁	Counter	Scale Number of graduations	Indication precision of the pointer	d₂	d₃	l₁	l₂

60	0000.2	20	0,01	68,5	67	33	26
60	0000.5	50	0,01	68,5	67	33	26
60	0001.0	100	0,01	68,5	67	33	26
60	0002.0	40	0,05	68,5	67	33	26
60	0002.5	50	0,05	68,5	67	33	26
60	0003.0	60	0,05	68,5	67	33	26
60	0004.0	80	0,05	68,5	67	33	26
60	0005.0	100	0,05	68,5	67	33	26

Filter combination produces no result.

Specification

Housing plastic (Polyamide PA)

Glass fiber reinforced
Black, matte

Sight glass plastic (Polyamid PA)

Clear glass, ageing proof
Shock-resistant

Housing / Sight glass

Temperature resistant up to 100 °C
Oil and solvent proof
(not suitable for alcohol)

Pointer plastic, red

Scale aluminum

Matte anodized
Graduation lines black

Counter

Numbers white
Number wheels integers black,
decimals red

Pendulum system on ball bearings

Protection class IP 67

Plastic Characteristics

IP Protection Classes

RoHS

On request

Special scales

Information

Position indicators GN 000.3 have been shaped for installation into different operating elements.

The salient features of these counters are:

The housing, the hand spindle, and safety glass are produced from one piece of material and ultrasonically welded to give a spray water proof and corrosion free unit (Protection class IP 67).

The pendulum system is fitted with ball bearings to give the most accurate reading usable up to a spindle inclination of 60° angular.

The numbers in the counter are very clear and the decimal numbers are shown in red.

One complete revolution of the red pointer corresponds to one revolution of the spindle. This gives a very accurate reading and, combined with the digital indication from the counter, it is very simple to read.
