Heavy Duty Type

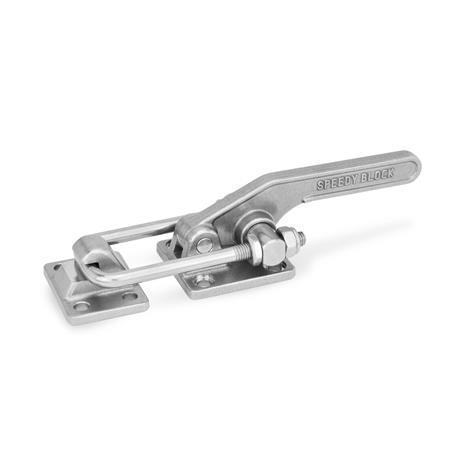

GN 852 Stainless Steel Latch Type Toggle Clamps

Stainless Steel Latch Type Toggle Clamps GN 852 thumbnail

Type

T2	With mounting holes, with U-bolt latch, with catch
T	With mounting holes, without U-bolt latch, with catch
T2S	For welding, with U-bolt latch, with catch
TS	For welding, without U-bolt latch, with catch

Show filter

Size	F_H in N Holding capacity	a₁	a₂	b₁	b₂	b₃	b₄	b₅	b₆	b₇	b₈	b₉	d₁	d₂	d₃	h₁ ≈

1700	14000	22	21	68	64	46	48	68	26,5	38	28	6	M 10	8,5	14	55
4000	30000	28	27	85	80	55	60	80	32	50	32	6	M 12	10,5	16	68

Filter combination produces no result.

Size	h₂	l₁ ≈ Type T2S / TS	Type T / T2	l₂ min.	l₃ ≈	m₁	m₂	m₃	m₄	m₅	r ≈ at w₂ = 0	s	t	w₁ Stroke	w₂ ≈ Adjustable range

1700	34,5	218	223	33	129	45	11,5	45	10	28	96	7	2	54	15
4000	42,5	265	271	30	151	57	14	57	12,5	35	107	9	2	62	25

Filter combination produces no result.

Specification

Body / Catch /
Clamping lever / Square U-bolt
Stainless steelNI AISI 304
Forged

Other parts
Stainless steel AISI 303

All moving parts
Lubricated with special grease

Stainless Steel Characteristics

RoHS

Information

Stainless steel latch type toggle clamps GN 852 are used for very high holding forces as may be required in plastic high pressure mold forming.

The stroke of the square U-bolt can be adjusted within its range.

In addition to the standard lengths of the square U-bolts shown in the table, a variety of other lengths are also available under the GN 951.2 series.
