with Loss Protection
GN 5334.13 Stainless Steel Star Knobs
Type
| A | Only with retaining ring |
| H | With retaining cable |
| K | With ball chain |
| d1 | d2 | d3 | h1 | h2 | h3 | r ≈ | s | t min. |
|---|---|---|---|---|---|---|---|---|
| 40 | M 8 | 14 | 24 | 12 | 3,2 | 22,3 | 2,8 | 15 |
| 50 | M 10 | 18 | 30 | 17 | 3,9 | 29,6 | 3,2 | 18 |
| 60 | M 12 | 20 | 38 | 20 | 3,9 | 30,7 | 3,2 | 22 |
Filter combination produces no result.
Specification
Knob
Stainless steel AISI 316 L
Bushing
Stainless steel AISI 304
Retaining ring GN 111.6
Stainless steel AISI 301
Ball chain GN 111.5 (Type K)
Stainless steel AISI 301
Retaining cable GN 111.2 (Type H)
Stainless steel
Coated with clear plastic
RoHS
Stainless steel AISI 316 L
- Hub welded
- Matte, shot blasted
Bushing
Stainless steel AISI 304
Retaining ring GN 111.6
Stainless steel AISI 301
Ball chain GN 111.5 (Type K)
Stainless steel AISI 301
Retaining cable GN 111.2 (Type H)
Stainless steel
Coated with clear plastic
RoHS
On request
Ball chains / retaining cables with other lengths
With spiral retaining cable GN 111.4
Other GN / DIN standards with loss protection
With spiral retaining cable GN 111.4
Other GN / DIN standards with loss protection
Information

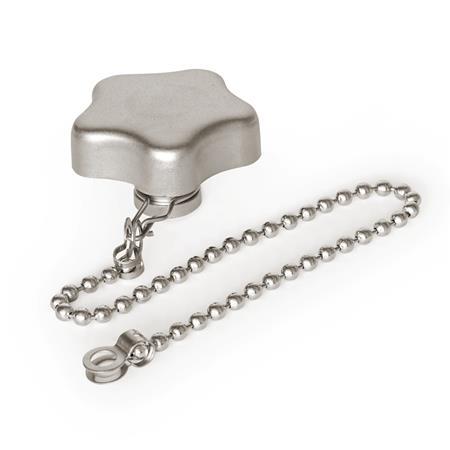

Stainless steel star knobs GN 5334.13 can be captive-attached to a base element with the help of a ball chain or a retaining cable.
The star knobs are supplied ready assembled (with retaining ring and ball chain or retaining cable).
Original ELESA design, now produced in metal in agreement with ELESA S.p.A.
