Material AISI 303

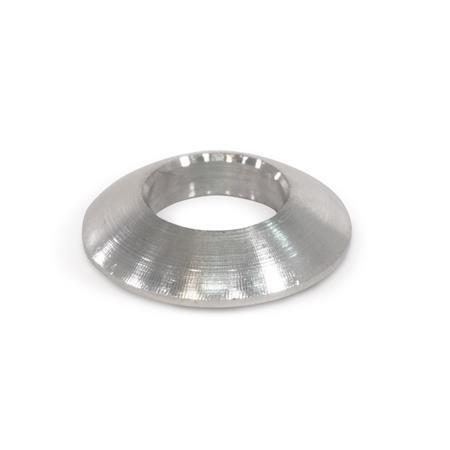

DIN 6319 Stainless Steel Spherical / Dished Washers
Type
| C | Spherical seat washer |
| D | Dished washer with d°°3°° = d°°2°° |
| G | Dished washer with d°°4°° > d°°2°° |
| d1 H13 Type C | Type D / G | d2 | d3 | d4 | d5 | d6 Screw | h1 | h2 | h3 | h4 | h5 ≈ | h6 ≈ | r | Max. transferable static bolt force in kN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6,4 | 7,1 | 12 | 12 | 17 | 11 | M 6 | 0,7 | 2,3 | 2,8 | 4 | 4,2 | 5,4 | 9 | 6 |
| 8,4 | 9,6 | 17 | 17 | 24 | 14,5 | M 8 | 0,6 | 3,2 | 3,5 | 5 | 5,6 | 7,1 | 12 | 10 |
| 10,5 | 12 | 21 | 21 | 30 | 18,5 | M 10 | 0,8 | 4 | 4,2 | 5 | 6,5 | 7,3 | 15 | 17 |
| 13 | 14,2 | 24 | 24 | 36 | 20 | M 12 | 1,1 | 4,6 | 5 | 6 | 8 | 9 | 17 | 25 |
| 15 | 16,5 | 28 | 28 | 40 | 24,8 | M 14 | 1,2 | 5 | 5,6 | 6 | 8,5 | 9,5 | 22 | 34 |
| 17 | 19 | 30 | 30 | 44 | 26 | M 16 | 1,3 | 5,3 | 6,2 | 7 | 9,6 | 10,4 | 22 | 47 |
| 21 | 23,2 | 36 | 36 | 50 | 31 | M 20 | 2 | 6,3 | 7,5 | 8 | 11,7 | 12,2 | 27 | 73 |
| 25 | 28 | 44 | 44 | 60 | 37 | M 24 | 2,4 | 8,2 | 9,5 | 10 | 15,2 | 15,7 | 32 | 105 |
| 31 | 35 | 56 | 56 | 68 | 49 | M 30 | 3,6 | 11,2 | 12 | 12 | 19,2 | 19,7 | 41 | 168 |
| 37 | 42 | 68 | 68 | - | 60 | M 36 | 4,6 | 14 | 15 | - | 23,5 | - | 50 | 245 |
| 43 | 49 | 78 | 78 | - | 70 | M 42 | 6,5 | 17 | 18 | - | 29 | - | 58 | 336 |
| 50 | 56 | 92 | 92 | - | 82 | M 48 | 8 | 21 | 22 | - | 35,5 | - | 67 | 441 |
Specification
Stainless steelNI AISI 303
Not hardened
RoHS
Not hardened
RoHS
On request
Hardened spherical washers in stainless steel
Hardened dished washers in stainless steel
Hardened dished washers in stainless steel
Information
Stainless steel spherical washers and dished washers DIN 6319 are used for clamping on non-parallel surfaces.
Thanks to the material used, the spherical washers and dished washers are generally suited for aggressive environmental conditions.
The dished washers type G with enlarged outside diameter are mainly used on elongated holes.
When utilizing stainless steel hexagon nuts with spherical seating DIN 6330 type B the spherical washer is redundant.
| How to order |
| ||||||
DIN 6319-21-C-NI |
