with Increased Clamping Force

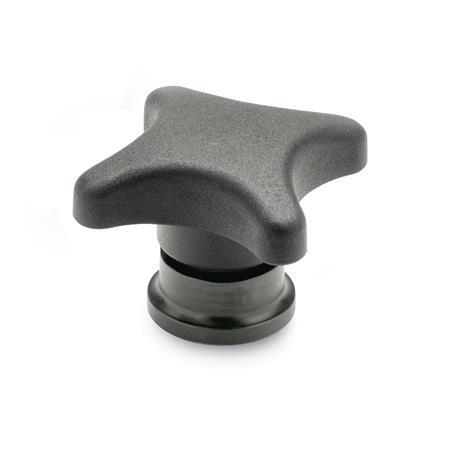

GN 6335.9 Hand Knobs

Show filter

d₁	d₂	d₃	h₁	h₂	t min.

40	M 6	24	27	15,5	14,5
50	M 8	25	34	22,5	15
63	M 10	30	41	26,5	19
80	M 12	35	54	34	28,5

Filter combination produces no result.

Specification

Plastic
Technopolymer (Polyamide PA)

Shock-resistant
Black, matte finish

Bushings
High quality steel
Nitrided, blackened

Plastic Characteristics

RoHS

On request

With threaded stud

Information

Hand knobs GN 6335.9 have a clamping contact area which is connected to the knob via an axial ball bearing. This has led to the following advantages:

Doubled clamping force through vastly reduced friction. There is no movement on the contact area between star knob and component which greatly reduces any marking on the clamping area. In addition a reduced creep factor has been achieved by the indreased preload.
