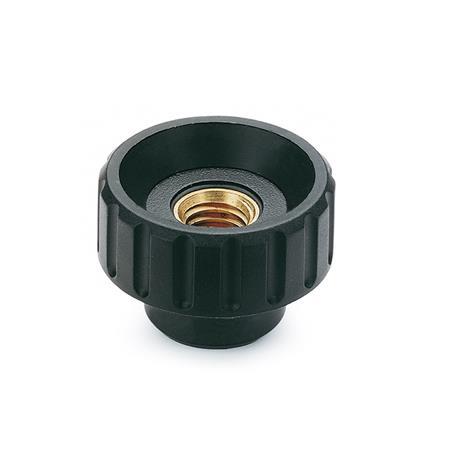

GN 590 Knurled Nuts, plastic, bushing in brass
ELESA original design BT. / BT.FP
Type
| D | With threaded through bore |
| E | With threaded blind bore |
| d1 | d2 Type D | d3 Type E | d4 | h | k | t1 min. | t2 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | - | - | - | M 3 | M 4 | M 5 | 9,5 | 11,5 | 7,5 | 6 | - |
| 16 | M 4 | M 5 | - | M 3 | M 4 | M 5 | 11 | 13 | 8 | 6 | 10 |
| 20 | M 6 | - | - | M 5 | M 6 | - | 11,5 | 16 | 10 | 6 | 12 |
| 25 | M 6 | M 8 | - | M 5 | M 6 | - | 16 | 19 | 11 | 6 | 14 |
| 32 | M 6 | M 8 | M 10 | M 8 | - | - | 17 | 22 | 13 | 10 | 16 |
| 40 | M 10 | - | - | M 8 | M 10 | - | 19 | 27 | 14 | 13 | 20 |
| 50 | M 10 | - | - | M 10 | - | - | 22 | 28,5 | 15 | 13 | 20 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Bushing
Brass
RoHS
Technopolymer (Polyamide PA)
- Reinforced
- Temperature resistant up to 130 ° C
- Black, matte finish
Bushing
Brass
RoHS
Information
| How to order |
| ||||||
GN 590-20-M6-D |
