Bushing Stainless Steel

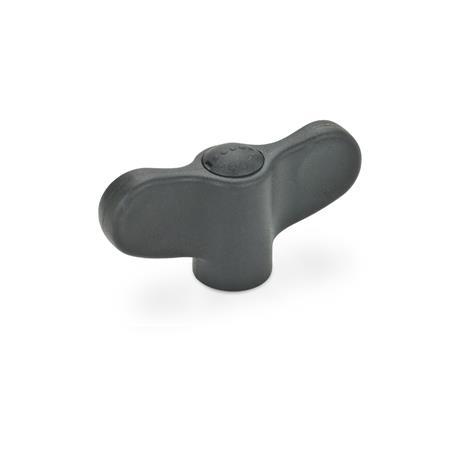

GN 634.1 Wing Nuts
ELESA original design EWN.SST
Type
| E | With threaded blind bore |
| d1 | d2 | d3 | d5 | b | h1 | h2 | h3 | h4 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 40 | M 5 | M 6 | M 8 | 13,5 | 10 | 6 | 20 | 4 | 12 | 18 |
| 48 | M 6 | M 8 | - | 13,5 | 10 | 7 | 24 | 5,5 | 12 | 22 |
| 55 | M 8 | - | - | 16 | 12 | 8 | 28 | 6,5 | 18 | 25 |
| 63 | M 10 | - | - | 19 | 14 | 9 | 32 | 7,5 | 20 | 29 |
| 70 | M 10 | - | - | 20 | 15 | 10 | 36 | 8 | 20 | 32 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Bushing
Stainless steel AISI 303
Color of the cover cap:
Black-gray, RAL 7021, matte finishDSG
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
RoHS
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 130 °C
- <*>Black-gray, similar RAL 7021, matte finish
Bushing
Stainless steel AISI 303
Color of the cover cap:
Black-gray, RAL 7021, matte finishDSG
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
RoHS
On request
All stainless steel
Information
Design and handling of the wing nuts GN 634.1 comply with the requirements and claims of the Ergostyle® product family.
see also...
| How to order |
| ||||||||
GN 634.1-55-M8-E-DSG |
