with Safety Hook, Heavy Duty Type

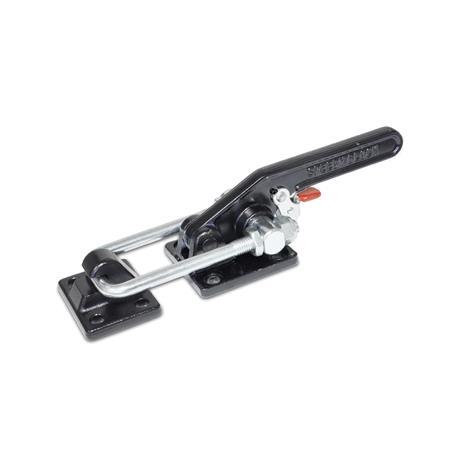

GN 852.3 Latch Type Toggle Clamps

Latch Type Toggle Clamps GN 852.3 thumbnail

Type

T6	With mounting holes, with U-bolt latch, with catch
T	With mounting holes, without U-bolt latch, with catch
T6S	For welding, with U-bolt latch, with catch
TS	For welding, without U-bolt latch, with catch

Show filter

Size	FH in N Holding capacity	a₁	a₂	b₁	b₂	b₃	b₄	b₅	b₆	b₇	b₈	d₁	d₂	d₃	h₁ ≈	h₂

1700	17000	22	21	68	64	46	48	28	26,5	38	17	M 10	8,5	14	55	34,5
4000	40000	28	27	85	80	55	60	34	32	50	20	M 12	10,5	16	68	42,5

Filter combination produces no result.

Size	l₁ ≈ Type T6S / TS	Type T6 / T	l₂ min.	l₃ ≈	m₁	m₂	m₃	m₄	m₅	r ≈ at w₂ = 0	s	t	w₁ Stroke	w₂ ≈ Adjustable range

1700	218	223	33	129	45	11,5	45	10	28	96	7	2	54	15
4000	266	271	30	151	57	14	57	12,5	35	107	9	2	62	25

Filter combination produces no result.

Specification

Body / Catch / Clamping lever
Steel C22

Forged
Black lacquered (Type T6 / T)
Blackened (Type T6S / TS)

Square U-bolt / Bearing pin
Steel St 37
Zinc plated, blue passivated

All moving parts
Lubricated with special grease

RoHS

Information

Latch type toggle clamps GN 852.3 are compact in design and can be used to ensure high holding capacities.

When closing the spanner, a safety hook positively locks onto the body. This prevents the inadvertent or vibration-induced release from the clamping position. To open the safety hook it is unlocked per one-hand operation.

The stroke of the square U-bolt can be adjusted within its range.

In addition to the standard lengths of the square U-bolt shown above, more lengths may be achieved by using series GN 951.2.
