Steel, Blackened

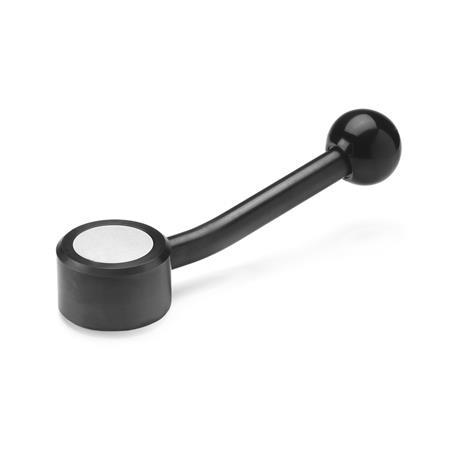

GN 125 Flat Adjustable Tension Levers, with threaded insert

Flat Adjustable Tension Levers with threaded insert GN 125 thumbnail

Flat Adjustable Tension Levers with threaded insert GN 125 sketch

Type

D	straight lever
E	angled lever

Show filter

d₁	d₂			d₃	d₄	d₅	h₁	h₂	h₃	h₄≈	h₅ Stroke	l	t min.

32	M 6	M 8	-	13,5	8	20	20,5	1,5	12,5	36	4	100	11
36	M 8	M 10	M 12	16	10	25	24,5	2	15	45	4,5	120	14
40	M 10	M 12	-	19	12	30	26,5	2	16	50	4,5	130	17
45	M 12	M 14	M 16	23	12	32	31,5	2	20	60	5	145	23

Filter combination produces no result.

Specification

Steel
Blackened

Cover
Plastic, light gray

Ball knobs DIN 319
Plastic, Duroplast
Black, shiny finish

Safety circlip
Plastic (Polyacetal)

Plastic Characteristics

RoHS

On request

With threaded through hole

With inch threads

Information

The overall height of flat adjustable tension levers GN 125 is reduced to a minimum.

As all other adjustable levers, they are ideal when-ever parts have to be clamped in a confined space, or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged.

Pulling the lever, disengages the serrations and the lever can be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.
