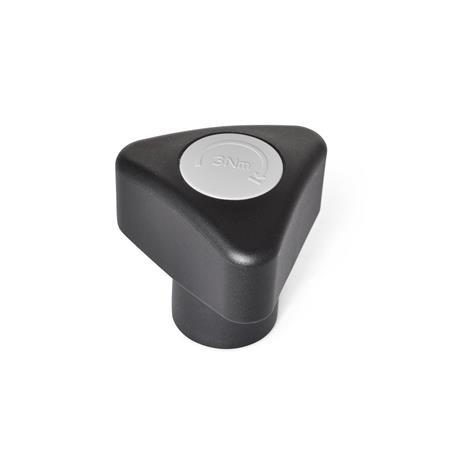

GN 5344 Torque Limiting Triangular Knobs
ELESA original design VTD
| d1 | d2 | d3 | h1 | h2 | Torque ±20% in Nm | ||
|---|---|---|---|---|---|---|---|
| 60 | M 6 | 27,5 | 50,5 | 20 | 10 | 2 | 3 |
| 60 | M 8 | 27,5 | 50,5 | 20 | 12 | 2 | 3 |
| 80 | M 8 | 27,5 | 53,5 | 22 | 12 | 4 | 6 |
| 80 | M 10 | 27,5 | 53,5 | 22 | 12 | 4 | 6 |
| 80 | M 12 | 27,5 | 53,5 | 22 | 12 | 4 | 6 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Torque limiting mechanism
Steel, hardened
Bushing
Steel zinc plated, blue passivated
Color of the cover cap
Gray, RAL 7035, matte finishDGR
RoHS
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 80 °C
- Black, matte
Torque limiting mechanism
Steel, hardened
Bushing
Steel zinc plated, blue passivated
Color of the cover cap
Gray, RAL 7035, matte finishDGR
RoHS
On request
With threaded stud
With other torques
With stainless steel bushing
With other torques
With stainless steel bushing
Information
Torque limiting triangular knobs GN 5320 are used when the manually applied torque is to be limited.
When turned clockwise, the torque mechanical system of the triangular knob triggers an “over-engagement” as soon as the specified torque is reached. When tightening, this will ensure that the maximum permissible torque is not exceeded.
When turned counterclockwise, the torque needed for disconnection is reliably applied.
Endurance tests have shown that the torque does not change even after up to 60,000 tightening cycles.
