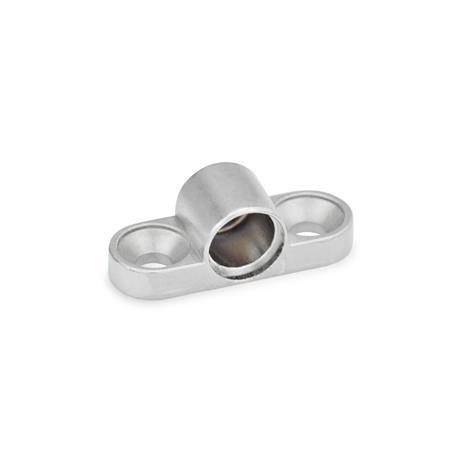

GN 614.1 Holder for Spring Plungers
Type
| L | Fixing on the left, without spring plunger |
| R | Fixing on the right, without spring plunger |
| B | Fixing on both sides, without spring plunger |
| d1 Bore for spring plunger GN 614 | d3 for countersunk screw DIN 7991 | d2 for counter thread DIN 7991 | d4 -0,05 | b | h1 ±0,05 | h2 | l1 ±0,05 | l2 |
|---|---|---|---|---|---|---|---|---|
| 6 | 3,2 | M 3 | 3 | 8,5 | 4,25 | 3,2 | 7,5 | 3 |
| 8 | 4,3 | M 4 | 4 | 10,5 | 5,25 | 4,2 | 9,5 | 4 |
Filter combination produces no result.
Specification
Accessory
Spring plungers GN 614 have to be ordered separately.Information
Holders for spring plungers GN 614.1 are standard parts which simplify the use of spring plungers GN 614.
For types R, L and B, only a „empty“ holder for spring plungers (without spring plungers) are supplied which can then be used together with all other design variants of GN 614-6 and GN 614-8 of the types KD, MS and NI.
| How to order |
| ||||
GN 614.1-6-R |
RoHS compliant:
-
-
Weight:
-
-
