DIN 71751 |
Standard sheet

DIN 71751

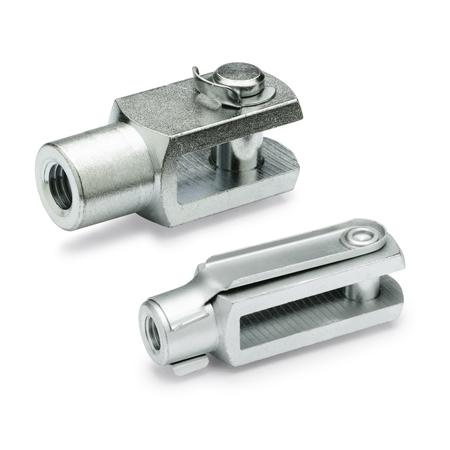

DIN 71751 thumbnail

Zoom

Zoom

DIN 71751 sketch

Form

A
B
KL
SL

Show filter

d₁	l₁		d₂	d₁	d₂₁	a	b	d₃	l₂	x₁₂	l₃	x₁₃	l₄

4	8	16	M 4	M 4L	-	8	4	8	16	24	21	29	6
5	10	20	M 5	M 5L	-	10	5	9	20	30	26	36	75
6	12	24	M 6	M 6L	-	12	6	10	24	36	31	43	9
8	16	32	M 8	M 8L	M 8F = M8x1	16	8	14	32	48	42	58	12
10	20	40	M 10	M 10L	M 10F = M10x1,25	20	10	18	40	60	52	72	15
12	24	48	M 12	M 12L	M 12F = M12x1,25	24	12	20	48	72	62	86	18
14	28	56	M 14	M 14L	M 14F = M14x1,5	27	14	24	56	85	72	101	225
16	32	64	M 16	M 16L	M 16F = M16x1,5	32	16	26	64	96	83	115	24
20	40	-	M 20	M 20L	M 20F = M20x1,5	40	20	34	80	-	105	-	30
25	50	-	M 24	M 24L	M 24F = M24x2	50	25	42	100	-	132	-	36
30	54	-	-	-	M 27F = M27x2	55	30	48	110	-	148	-	38

Filter combination produces no result.

Specification

RoHS

Information

How to order

1	d₁
2	l₁
3	d₂
4	Form

DIN 71751-10-20-M10-B
