with Safety Hook, for Pulling Action

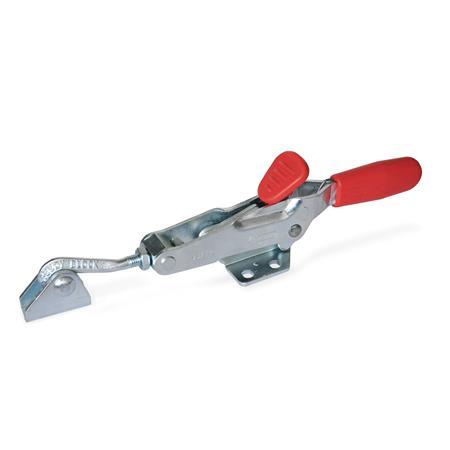

GN 850.2 Latch Type Toggle Clamps, Steel, zinc plated

Latch Type Toggle Clamps Steel zinc plated GN 850.2 thumbnail

Type

T	With draw axle, with catch
TF	Without draw axle, without catch
TG	With draw axle, with catch, with oval head latch bolt
TT	With draw axle, with catch, with T-head latch bolt
TU	With draw axle, with catch, with J-hook latch bolt

Show filter

Size	F_H in N Holding capacity	a	b₁	b₂	b₃	b₄	b₅	b₆	b₇	d₁	d₂	d₃	d₄	d₅	h₁ ≈	h₂	h₃	h₄	h₅

500	5000	19	50	49	35	34	18	38	10	M 8	6,5	6,7	7	8	45	17	65	30	28
1000	10000	28	61	63	50	41	26	50	11	M 10	8,5	8,5	9	10	56	20	74	40,5	39

Filter combination produces no result.

Size	l₁ ≈	l₂ ≈	l₃ ≈ Type TG	l₄ ≈ Type TT	l₅ ≈ Type TU	l₆	m₁	m₂	m₃	m₄	m₅	m₆	r ≈	s	t	w₁ Stroke	w₂ ≈ Adjustable range

500	197	33	76,5	76,5	76,5	34	19	33,5	19	22,3	8	25,4	35	3	16	83	8
1000	242	34	95,5	93	93	42	32	45	31	25,4	8	31	45	4	19	110	12

Filter combination produces no result.

Specification

Steel

Case-hardened steel C10
Zinc plated, blue passivated
Draw hook
Steel St 37
Zinc plated, blue passivated

All moving parts
Lubricated with special grease

Hand grip
High quality, oil resistant, red plastic

RoHS

Information

Latch type toggle clamps GN 850.2 have a safety function whereby, during closing, a spring loaded safety hook latch ensures a secure locking connection. It prevents the inadvertent unlocking of the clamp due to vibrations or an accidental attempt of loosening / opening of the clamp. To open and release the clamp, pull up on the finger grip to disengage the safety hook latch mechanism (one hand operation).

They are especially suited for rapid closing and fastening of lids, flaps and molds.

During clamping, the pivoting movement of the clamping lever is transformed into an axial movement of the tension axis / tension hook and ensures form-fitting retention.

Latch type toggle clamps of type T are equipped with a tension axis firmly attached to the clamping arm. Type TF can be used for specific applications by attaching individual latch bolts. Latch bolts for latch type toggle clamps of Types TG, TT and TU can be adjusted along the adjustment dimension w₂.
