for Toggle Clamps with Solid Clamping Arm

GN 809.1 Clamping Arm Extenders

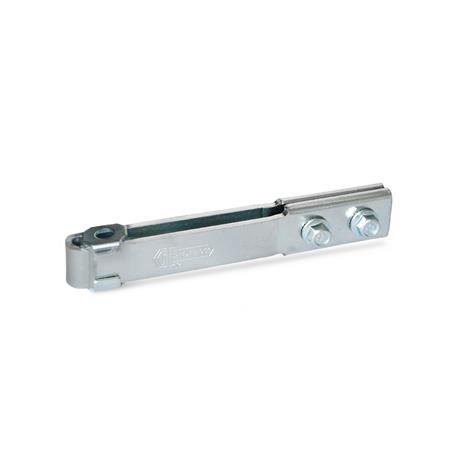

Clamping Arm Extenders GN 809.1 thumbnail

Show filter

a	h₁	b₁	b₂	d₁	d₂	h₂	m	Length l	for toggle clamps GN 810 GN 810.1 GN 810.3 GN 810.4	GN 820 GN 820.1 GN 820.3 GN 820.4

67,5	16	10	21,5	6,3	M 5	21,5	20	121	130	130
71,5	18	12	26,5	8,2	M 6	24,5	26	142	230	230

Filter combination produces no result.

Specification

SteelST
Zinc plated, blue passivated

RoHS

Information

With clamping arm extenders GN 809.1, various toggle clamps with “solid clamping arm” can be easily and quickly extended. The slot of the extender corresponds to the dimensions of the respective toggle clamp size with “forked clamping arm” and is therefore compatible with all accessories, such as flanged washers, clamping screws, etc.

For assembly, the clamping arm extenders are solid onto the clamping arms of the toggle clamps and bolted into place. The required holes in the clamping arm of the toggle clamp must be made by the user.

All parts are supplied in a non-assembled set. Two flanged washers are included for fastening the clamping screw.
