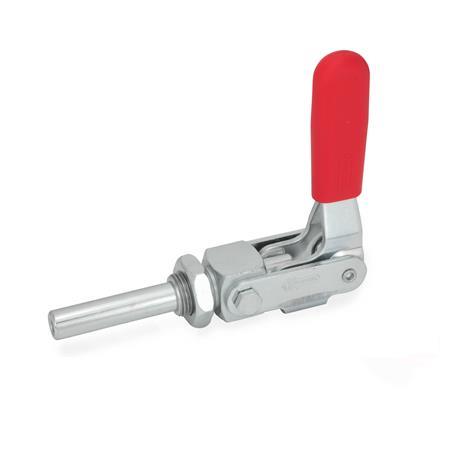

GN 843.1 Push-Pull Type Toggle Clamps, Steel, zinc plated

AS	Without mounting bracket
ASW	With mounting bracket

Show filter

Size	F_H in N Holding capacity	a	b₁	b₂	d₁	d₂	d₃	d₄	h₁ ≈	h₂	h₃

80	3000	24	35	30	10	M 6	M 16 x 1,5	5,5	70,5	38,5	19
165	5400	32	60	35	12	M 8	M 20 x 1,5	6,5	110	50	22
340	7000	48	75	47,6	16	M 10	M 24 x 2	8,5	146	70	30

Filter combination produces no result.

Size	l₁ ≈	l₂ ≈	l₃ ≈	l₄ ≈	l₅	m₁	m₂	m₃	s	t	w Stroke

80	71	65	34	22	22	20	12	-	4	12	21
165	112	104	54	39	41	41	13,5	19	5	15	38
340	173	162	85	68	59	55	19	25	5	18	66

Filter combination produces no result.

Specification

Steel
Sheet metal parts
Case-hardened Steel C10
Zinc plated, blue passivated

All moving parts
Lubricated with special grease

Hand grip
High quality, oil resistant, red plastic

RoHS

Clamping Screws

Push-pull type toggle clamps GN 843.1 can be mounted on a mounting bracket (type ASW) or „directly“ on the jig.

The center bushing securing method allows the operating handle to be turned to the most favorable position.

Push-pull type toggle clamps GN 843.1 replace the standard GN 843.

RoHS compliant: Info

Weight:
