Plastic, Bushing / Retracting Mechanism Stainless Steel

GN 521.6 Handwheels with Retractable Handle

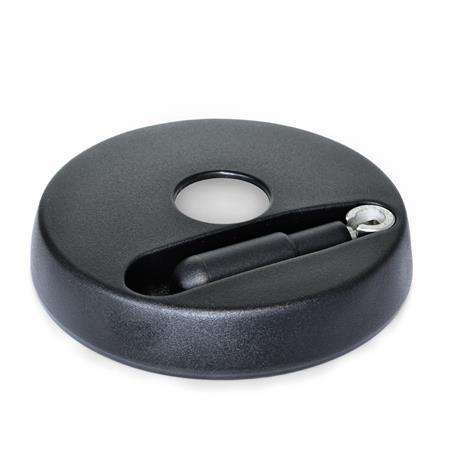

Handwheels with Retractable Handle GN 521.6 thumbnail

ELESA original design VDS+IR-SST Info

Handwheels with Retractable Handle GN 521.6 sketch

Bore code

B	Without keyway
K	With keyway

Type

R	With revolving retractable handle

Show filter

d₁	d₂ H7	d₃	d₄	d₅	d₆	d₇	b	h	l₁	l₂	l₃	r	Ø Handle

100	10	22	20	30	25	27	24	9	22	34	45	39	15,5
125	12	26	24	35	28	31	28	11	27	39,5	60	49	18
150	14	26	24	38	30	34	32	10	30	44	65	58	22
200	20	40	38	50	40	44	39	13	36	53	90	81	25

Filter combination produces no result.

Specification

Plastic
Technopolymer (Polypropylene PP)

Reinforced, shock-resistant
Temperature resistant up to 80 °C
Black, matte finish

Hub bushing
Stainless steel AISI 304

Cover
Plastic, light gray

Retractable handle

Plastic, Technopolymer (Polyamide PA)
Black, matte finish
Retracting mechanism / spindle
Stainless steel AISI 303

Keyway P9 DIN 6885 Page 1

ISO Fundamental Tolerances

Plastic Characteristics

Stainless Steel Characteristics

Cross holes GN 110

RoHS

On request

With safety retractable handle
(swivelling)

Information

The handle in the handwheels GN 521.6 is locked in a conical bore in the operating position.

For reversal, it must first be pulled from the cone in axial direction.

A pressure spring holds the handle in both positions. When swung out, it automatically engages again.

The cover conceals clamping elements, e.g. countershaft pulleys, as well as protruding and recessed shafts. For mounting, the cover is pushed in by hand. For dismantling, the cover can be raised and taken off by applying moderate pressure in the rim of the cover.
