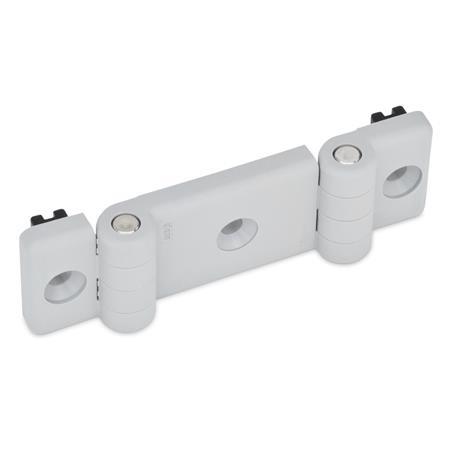

GN 159.1 Double Hinges

ELESA original design CFI. Info

Show filter

l₁	m	d₁	d₂	h₁	h₂	l₂	for profiles widths a - b - a

89	35	6,5	8	16	8	36	30 - 30 - 30
109	40	6,5	8	16	8	36	40 - 30 - 40
99	40	6,5	8	16	8	36	30 - 40 - 30
119	45	6,5	8	16	8	36	40 - 40 - 40
104	42,5	6,5	8	16	8	36	30 - 45 - 30
124	47,5	6,5	8	16	8	36	40 - 45 - 40
134	50	6,5	8	16	8	36	45 - 45 - 45
119	50	6,5	8	16	8	36	30 - 60 - 30
139	55	6,5	8	16	8	36	40 - 60 - 40
149	57,5	6,5	8	16	8	36	45 - 60 - 45

Filter combination produces no result.

Specification

Plastic (Polyamide PA)

Black, matte finishSW
Gray, matte finishLG
Temperature resistant up to 130° C

Pin
Steel, nickel-plated

Load Rating Information for Plastic Hinges

Swivelling range / Assembly example

Overview to appropriate standards of the assembly sets GN 965

Overview to appropriate standards of the assembly sets GN 968

Plastic Characteristics

RoHS

Information

Double hinges GN 159.1 are suitable for simple installation on standard commercially available extrusions to support the weight of a door by utilising the enclosed rectangular positioning elements.These are simply clipped into recesses in the hinge wings.

For every profile combination s₂- s₁ - s₂, the positioning elements in the commercial groove widths b are included.

Assembly sets GN 965 / GN 968 are used for the assembly on profile rails.
