with Knob, with / without Rest Position

GN 417 Indexing Plungers

Type

B	Without rest position
C	With rest position

Show filter

d₁ Pin h11 Bore +0,03/+0,08	b₁	b₂ Type B	Type C	b₃	b₄ -0,2	d₂	h₁	h₂	h₃	k₁ ±0,05	k₂	k₃	k₄ Type B	Type C	l₁	l₂	Spring load in N ≈ initial	end

4	22	16,5	19	6	3,3	12	7	4	10	14	4	8	4,5	7	4	10,5	3	12
5	28	22	25,5	8	4,3	16	9,5	4,5	13,5	18	5	10	7	10,5	5	13	5	24
6	32	27,5	30,5	10	5,4	18	10,5	5	15,5	21	5,5	12	10	13	6	15,5	5	21
8	34	33	37,5	12	5,4	21	12,5	6	18,5	23	5,5	12	15,5	20	8	18	6	22
10	39	35	40	14,5	6,5	25	14,5	6	21,75	27	6	15	13,5	18,5	10	22,5	4	25

Filter combination produces no result.

Specification

Guide
Zinc die casting
Powder coated
Black, textured finish

Plunger pin
Stainless steel AISI 303
Pressure spring

Pressure spring
Stainless steel AISI 301

Knob
Plastic (Polyamide PA)

Black, matte finish
Not removable

Load Rating Information

ISO Fundamental Tolerances

Stainless Steel Characteristics

Plastic Characteristics

RoHS

Accessory

Locators GN 417.1

Information

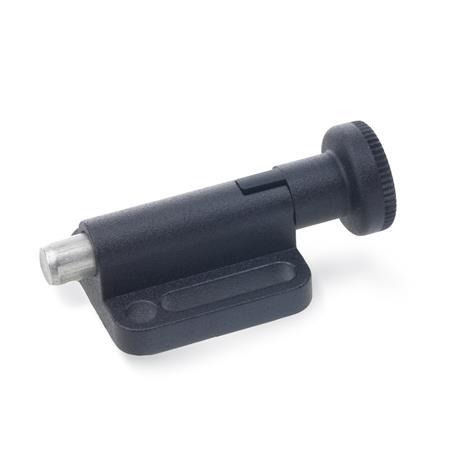

Indexing plungers GN 417 with flange are mounted parallel to the plungers and are characterized by an especially low height. The mounting hole pattern with slots offers generous adjustment options, such as for the use of aluminum sections. The use of washers makes it easier to mount the parts using the slots.

Indexing plungers with rest position (type C) are used for such applications where the plunger has to stay in its retracted position. After pulling out, the knob is turned by 90°. A notch keeps the plunger in this position.
