for Positioning Indicators GN 000.8 / GN 000.3

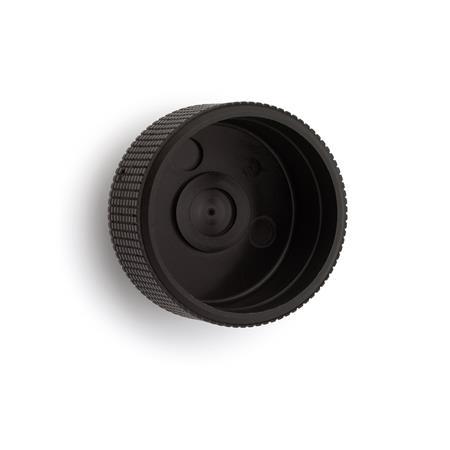

GN 534.8 Hand knobs, plastic
ELESA original design MBT. GXX
| d1 | d2 H7 Bore | d3 | d4 | b | l1 | l2 | l3 | for position indicators GN 000.8 Size | GN 000.3 Size |
|---|---|---|---|---|---|---|---|---|---|
| 60 | B 8 | 18 | 24 | 35,5 | 17,5 | 51 | 6 | 42 | - |
| 80 | B 10 | 22 | 28 | 38 | 22 | 58 | 6 | 60 | 60 |
Filter combination produces no result.
Specification
Plastic
Technoplymer (Polyamide)
Bushing
Steel, blackened
Grub screw DIN 916
with internal hexagon and serrated point
RoHS
Technoplymer (Polyamide)
- Glass fiber reinforced
- Temperature resistant up to 100 °C
- Black, matte finish
Bushing
Steel, blackened
Grub screw DIN 916
with internal hexagon and serrated point
RoHS
Accessory
Position indicators GN 000.8 / GN 000.3 are to be ordered separately.Information
Hand knobs GN 534.8 have a recess in the hub to accept position indicators GN 000.8 and GN 000.3.
They are made to a very high standard from the point of view of quality and design. Worth mentioning in particular is the profile of the rim which is unique for its form and function of these hand knobs.
For applications where these hand knobs are used without a position indicator, hub caps are available to shroud the hub.
see also...
| How to order |
| ||||
GN 534.8-60-B8 |
