Matte Shot-Blasted

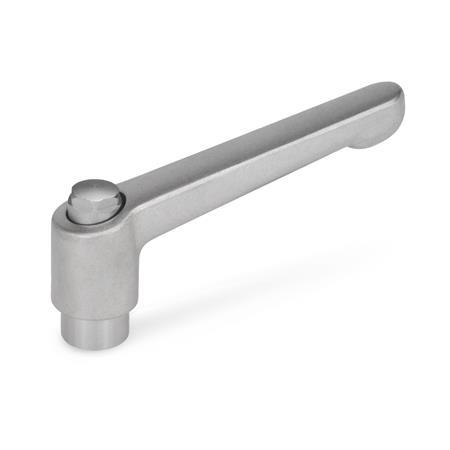

GN 300.5 Adjustable Stainless Steel Hand Levers, with bushing
Type
| AS | With external hexagon |
| IS | With internal hexalobular |
| l1 | d1 Thread | d2 H7 Bore | d3 | d4 | h1 | h2 | h3 | h4 Stroke | t min. | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | M 3 | - | - | - | - | 10 | 13 | 24,5 | 4 | 31 | 3,5 | 7 |
| 30 | M 4 | M 5 | M 6 | B 5 | B 6 | 10 | 13 | 24,5 | 4 | 31 | 3,5 | 8 |
| 45 | M 4 | M 5 | M 6 | B 5 | B 6 | 10 | 13 | 24,5 | 4 | 34 | 3,5 | 8 |
| 63 | M 6 | M 8 | - | B 8 | - | 13,5 | 17,5 | 31 | 6,5 | 45 | 4 | 11 |
| 78 | M 8 | M 10 | M 12 | B 8 | B 10 | 16 | 21 | 36 | 8 | 54 | 4 | 14 |
| 92 | M 10 | M 12 | - | B 12 | - | 19 | 24 | 43 | 11 | 64 | 4 | 17 |
Specification
Precision casting
- Stainless steel AISI CF-8
- Matte shot-blasted
Bushing
Stainless steel AISI 303
Retaining screw
Stainless steel AISI 303
Pressure spring
Stainless steel AISI 301
RoHS
On request
Information
Adjustable hand levers GN 300.5 with solid stainless steel handle, correspond to applications where „aggressive“ surrounding conditions are given, or where stainless steel materials are prescribed such as in food processing or chemical industry.
Retaining screws with hexagon head (Type AS) comply with the requirement "prevents water from accumulating".
Adjustable hand levers have proved to be ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.
Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
| How to order |
| ||||||
GN 300.5-78-M10-AS |
-
-
