Aluminum, with Grub Screw

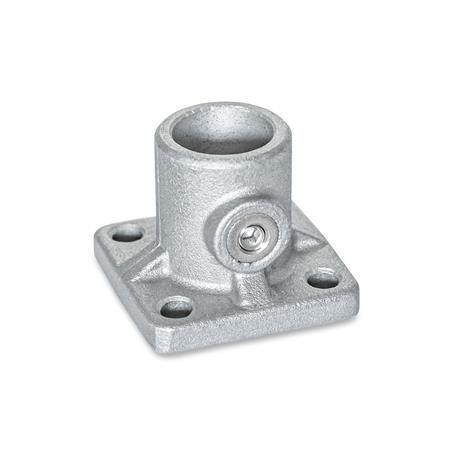

GN 162.8 Base Plate Connector Clamps
Identification no.
| 3 | With stainless steel grub screw DIN 913 |
| d1 Bore | d2 | k Clamping length | Length l | t | x1 | x2 | y1 | y2 | z Screw location |
|---|---|---|---|---|---|---|---|---|---|
| B 10 | 5,5 | 32 | 25 | 6 | 40 | 28 | 40 | 28 | M6-6 |
| B 12 | 5,5 | 32 | 25 | 6 | 40 | 28 | 40 | 28 | M6-6 |
| B 14 | 5,5 | 32 | 25 | 6 | 40 | 28 | 40 | 28 | M6-6 |
| B 15 | 5,5 | 32 | 25 | 6 | 40 | 28 | 40 | 28 | M6-6 |
| B 16 | 5,5 | 32 | 25 | 6 | 40 | 28 | 40 | 28 | M6-6 |
| B 18 | 5,5 | 32 | 25 | 6 | 40 | 28 | 40 | 28 | M6-6 |
Filter combination produces no result.
Specification
Aluminum
RoHS
- Powder coated
Black, RAL 9005, textured finishSW
- Plain, Matte shot-blastedBL
Grub screw DIN 913
Stainless steel AISI 304
RoHS
Information
The clamping bore of base plate connector clamps GN 162.8 is not machined and designed for GN 990 or DIN 2391, DIN 2395 and DIN 2462 construction tubes.
At the screw location z a grub screw reduces the bore cross-section for clamping.
| How to order |
| ||||||
GN 162.8-B14-3-SW |
RoHS compliant:
-
-
Weight:
-
-
