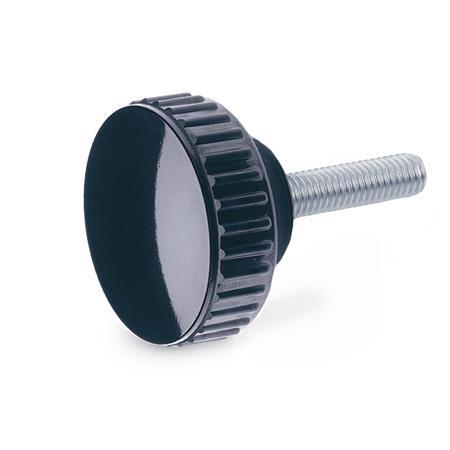

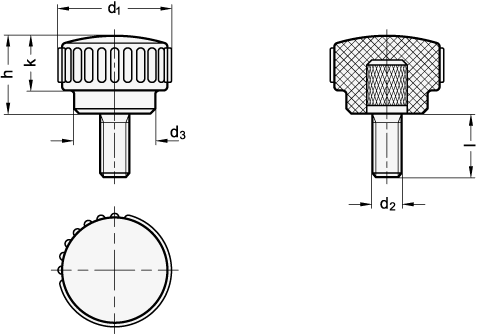

GN 529 Knurled Screws, threaded stud steel, zinc plated
ELESA original design B.193 p
| d1 | d2 | Length l | d3 | h | k | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | M 3 | M 4 | 6 | 10 | 16 | - | - | - | 11 | 11 | 8 |
| 15 | M 5 | - | 10 | 16 | 25 | - | - | - | 11 | 11 | 8 |
| 18 | M 5 | - | 10 | 16 | 25 | 40 | - | - | 13 | 12 | 9 |
| 22 | M 6 | - | 10 | 16 | 20 | 25 | 30 | 40 | 15 | 14 | 9 |
| 25 | M 6 | M 8 | 16 | 25 | - | - | - | - | 18 | 18 | 12 |
| 30 | M 8 | - | 16 | 25 | 40 | - | - | - | 24 | 18 | 12 |
| 35 | M 8 | - | 25 | 40 | - | - | - | - | 27 | 23 | 20 |
Filter combination produces no result.
Specification
Plastic
Duroplast (PF)
Threaded stud
Steel
Zinc plated, blue passivated
RoHS
Duroplast (PF)
- Temperature resistant up to 110 °C
- Black, shiny finish
Threaded stud
Steel
Zinc plated, blue passivated
RoHS
Information
The surface quality of the knurled nut GN 529 is of a sufficiently high standard to meet the highest requirements. The flash mark is not visible.
| How to order |
| ||||||
GN 529-25-M8-16 |
