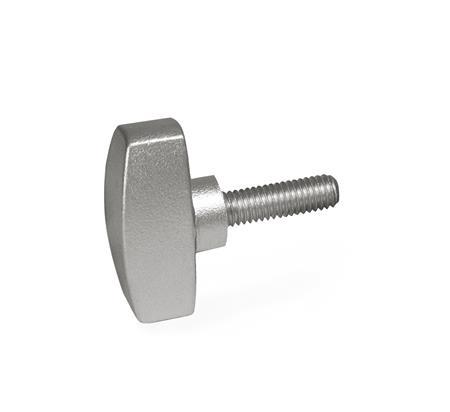

GN 433 Stainless Steel Wing Screws, precision casting AISI CF-8, matte shot-blasted

Show filter

d₁	d₂	Length l				b	d₃	h₁	h₂

20	M 4	6	10	-	-	9	8	8	3,5
26	M 5	10	16	-	-	11	10	10	4,5
26	M 6	16	20	25	-	11	10	10	4,5
34	M 6	16	20	25	30	13	12	12	5
34	M 8	16	20	25	30	13	12	12	5

Filter combination produces no result.

Specification

Stainless steel precision castingNI AISI CF-8

Stainless steel precision castingA4 AISI 316

RoHS

How to order

GN 433-NI-34-M8-20-MT

RoHS compliant: Info

Weight:

PDF not available

d₁	d₂	Length l				b	d₃	h₁	h₂

20	M 4	6	10	-	-	9	8	8	3,5
26	M 5	10	16	-	-	11	10	10	4,5
26	M 6	16	20	25	-	11	10	10	4,5
34	M 6	16	20	25	30	13	12	12	5
34	M 8	16	20	25	30	13	12	12	5
