GN 200 Indexing Mechanisms, Steel, blackened

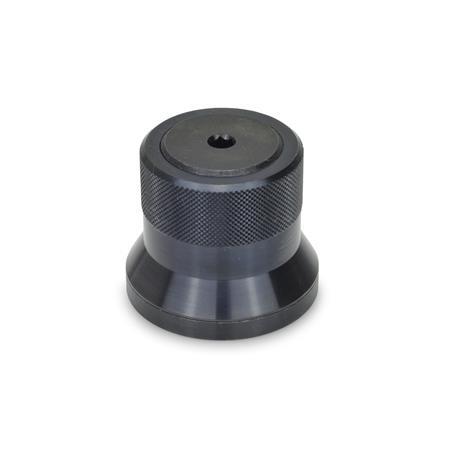

Indexing Mechanisms Steel blackened GN 200 thumbnail

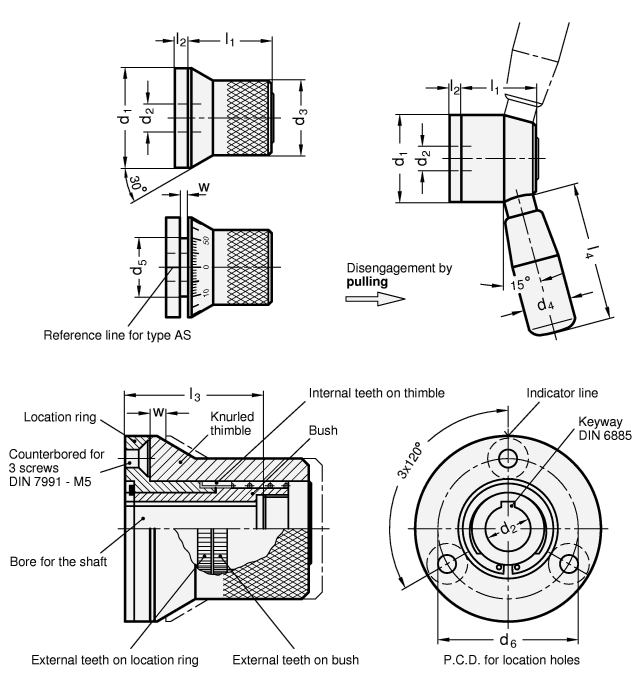

Indexing Mechanisms Steel blackened GN 200 sketch

Type

A	With knob, blackened, without scale
AS	Knob, matt chrome plated, with scale 0...50, 60 graduations
B	With one tension lever
C	With two tension levers

Show filter

d₁	d₂ H7 Bore with keyway K			d₃	d₄	d₅	d₆ P.C.D. Ø	l₁	l₂	l₃	l₄	w Stroke

44	K 10	K 12	-	33	23	23	33	37	6	31	75	4
52	K 12	K 14	K 16	42	26	31,5	41,8	37,5	6	31,5	90	4

Filter combination produces no result.

Specification

Steel
Blackened

Type AS:
Conrol knob matte chrome plated

Scale engraved
with laser precision, black
Reference line on location ring

Keyway P9 DIN 6885/1
for bore K 10
Keyway P9 DIN 6885/2
for bores > K 10

Fixed cylindrical handles EN 539
Plastic

Technopolymer (Polyamide)
Black, glossy finish

Keyway P9 DIN 6885 Page 1

Keyway P9 DIN 6885 Page 2

ISO Fundamental Tolerances

RoHS

On request

Special graduations
see „How to Order Graduations“

Information

Indexing mechanisms GN 200 replace and simplify complicated indexing mechanisms, such as indenting levers, latching mechanisms, indexing pins and other securing elements.

Besides the standard scale (Type AS) the control knob version may be supplied with any scale. In such cases, it is recommended to use the matte chrome plated version since the color contrast is better.

Regarding design, numbering run, numbering position and numbering sequence of the scale please see the layout for scale rings on the order sheet „How to Order Graduations“
