Stainless Steel

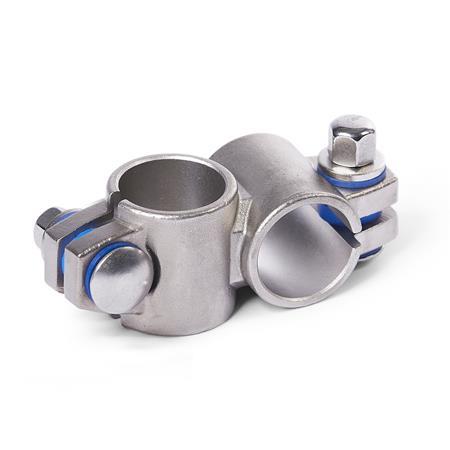

GN 132.5 Two-Way Connector Clamps
Type
| A | Without seals |
| B | With seals |
Identification no.
| 4 | With 2 stainless steel cap nuts DIN 917 |
| d1 Bore | d2 Bore | b | d3 | k Clamping length | l1 | m | z Screw locations | Accessory Recom. hand lever GN 911.3 for z l2 |
|---|---|---|---|---|---|---|---|---|
| B 30 | B 30 | 22 | 37 | 40 | 104 | 33 | M 8 | 63 | 78 |
| B 50 | B 50 | 30 | 60 | 65 | 150 | 53 | M 10 | 78 | 92 |
Filter combination produces no result.
Specification
Stainless steel AISI CF-8
Matte shot-blasted
Carriage bolt DIN 603
Stainless steel
Cap nuts DIN 917 / washers
Stainless steel
Seals
RoHS
Matte shot-blasted
Carriage bolt DIN 603
Stainless steel
Cap nuts DIN 917 / washers
Stainless steel
Seals
- Sealing disks
Plastic (Polyacetal POM) - Spacer ring
Silicon, 40 ... 60 Shore A
RoHS
Accessory
Adjustable Hand Levers GN 911.3Information
The clamping bores of two-way connector clamps GN 132.5 are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.
At the screw locations z, carriage bolts and cap nuts reduce the bore cross-section for clamping. Type B is equipped with seals at the screw locations.
For clamping without tools, the cap nuts can be replaced by adjustable hand levers GN 911.3 listed in the table as accessory.
| How to order |
| ||||||||
GN 132.5-B30-B30-A-4 |
RoHS compliant:
-
-
Weight:
-
-
PDF not available
