Plastic (Duroplast)

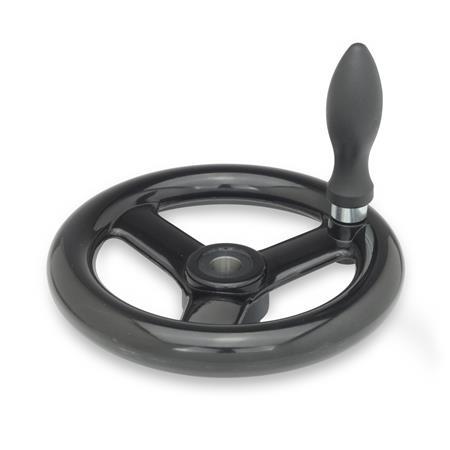

GN 555 Spoked Handwheels

Bore code

B	Without keyway
K	With keyway

Type

A	Without handle
D	With revolving handle

Show filter

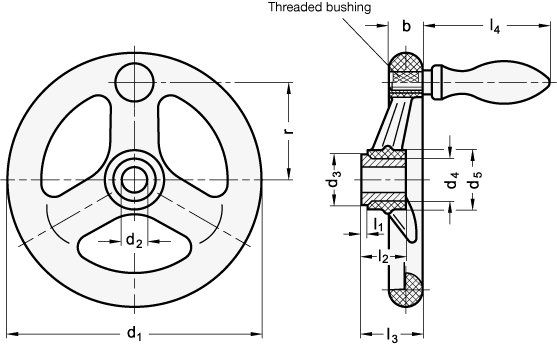

d₁	d₂ H7 Bore		d₃	d₄	d₅	b	l₁-0,5	l₂-0,5	l₃ ≈	l₄ ≈	r	Ø Handle	No. of spokes

100	10	12	25	19	28	15	-	23	28	54,5	37	16	3
125	12	14	24	20	30	18	1	25	35	67	47	20	3
140	14	-	32	24	36	20	3	26	35	67	53	20	3
160	14	16	32	24	37	22	5	28	40	83	59	25	3
200	18	20	40	31	45	24	4	33	45	83	76	25	3
250	24	-	49	38	56	29	7	36	58	105,5	98	32	3
300	26	-	58	47	70	32	2	40	65	105,5	113	32	3

Filter combination produces no result.

Specification

Plastic
Duroplast (PF)

Reinforced
Temperature resistant up to 110 °C
Black, shiny finish
Moulding flash removed and polished

Hub bushing
Steel, blackened

Threaded bushing
Brass

Keyway P9 DIN 6885 Page 1

ISO Fundamental Tolerances

Plastic Characteristics

RoHS

Information

Bore diameter and plane face of the steel bushing in the handwheels GN 555 are machined only after pressing and clamped at the ring, ensuring a good concentricity and plane run of the wheel rim. The accurate fitting bore with the place face perpendicular to the bore diameter is guaranteed.

Handwheels GN 555 are also available without hub bore.

How to order
