with Ball, with Collar, with Slot

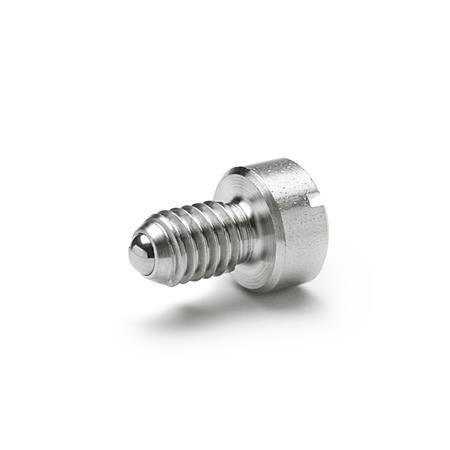

GN 815 Stainless Steel Spring Plungers
Type
| NI | Stainless steel, standard spring load |
| d1 | d2 | d3 | l1 | l2 | l3 | w compression | Spring load in N ≈ Initial | End |
|---|---|---|---|---|---|---|---|---|
| M 4 | 2,5 | 6 | 6,5 | 3 | 5 | 0,8 | 8 | 14 |
| M 5 | 3 | 8 | 8,5 | 4 | 6,7 | 0,9 | 8 | 14 |
| M 6 | 3,5 | 10 | 9 | 5 | - | 1 | 11 | 18 |
| M 8 | 4,5 | 13 | 11 | 5,5 | - | 1,5 | 18 | 31 |
| M 10 | 6 | 16 | 14 | 6 | - | 2 | 24 | 45 |
| M 12 | 8 | 18 | 15 | 7 | - | 2,5 | 26 | 49 |
Filter combination produces no result.
Specification
Type NI
RoHS
- Housing
Stainless steel AISI 303 - Ball
Stainless steel AISI 420C, hardened
RoHS
Information
Stainless steel spring plungers GN 815 are used as stops as well as thrust elements or ejectors.
The collar gives a defined installation position.
| How to order |
| ||||
GN 815-M5-NI |
